Locks and Catches
Cabinet Locks

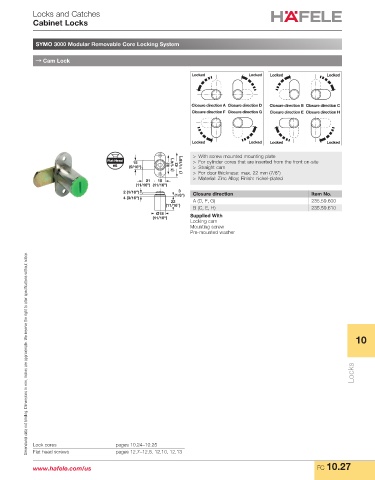

SYMO 3000 Modular Removable Core Locking System

→ Cam Lock

Locked Locked Locked Locked

Closure direction A Closure direction D Closure direction B Closure direction C
Closure direction F Closure direction G Closure direction E Closure direction H

Locked Locked Locked Locked

Flat Head 15 > With screw mounted mounting plate
> For cylinder cores that are inserted from the front on-site
#5 (9/16") 32 (1 1/4") 42 (1 11/16") > Straight cam
> For door thickness: max. 22 mm (7/8")
> Material: Zinc Alloy; Finish: nickel-plated
21 18
(11/16") (11/16")
2 (1/16") 3 Closure direction Item No.
4 (3/16") (1/8")
22 A (D, F, G) 235.59.600
(11/16")
B (C, E, H) 235.59.610
Ø18 Supplied With
(11/16")
Locking cam
Mounting screw
Pre-mounted washer

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

10

Locks

Lock cores pages 10.24–10.25
Flat head screws pages 12.7–12.8, 12.10, 12.13
