Locks and Catches
Cabinet Locks

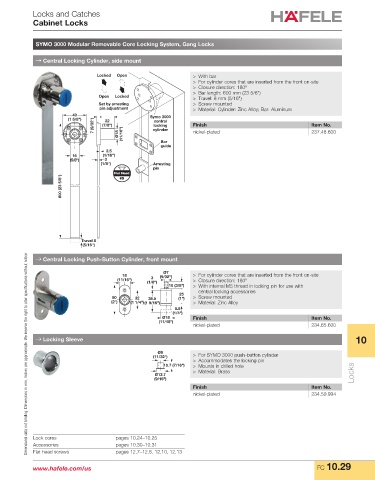

SYMO 3000 Modular Removable Core Locking System, Gang Locks

→ Central Locking Cylinder, side mount

Locked Open > With bar
> For cylinder cores that are inserted from the front on-site
> Closure direction: 180º
> Bar length: 600 mm (23 5/8")
Open Locked > Travel: 8 mm (5/16")
Set by arresting > Screw mounted
pin adjustment > Material: Cylinder: Zinc Alloy; Bar: Aluminum
40 Symo 3000
(1 5/8") 22 central
7 (9/32") (7/8") cylinder Finish Item No.
locking
Ø18 (11/16") nickel-plated 237.48.600
Bar
guide
2.5
16 (1/16")
(5/8") 3
(1/8") Arresting
pin
Flat Head
600 (23 5/8")
#5

Travel 8
(5/16")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Central Locking Push-Button Cylinder, front mount

Ø7
18 (9/32") > For cylinder cores that are inserted from the front on-site
(11/16") 3 > Closure direction: 180º
(1/8")
10 (3/8") > With internal M5 thread in locking pin for use with
central locking accessories
25
50 32 38.5 (1") > Screw mounted
(2") (1 1/4") (1 9/16") > Material: Zinc Alloy
5.5
(1/4")
Ø18 Finish Item No.
(11/16")
nickel-plated 234.65.600
→ Locking Sleeve 10
Ø9
(11/32") > For SYMO 3000 push-button cylinder
> Accommodates the locking pin
10.7 (7/16") > Mounts in drilled hole
> Material: Brass
Ø13.7 Locks
(9/16")
Finish Item No.
nickel-plated 234.59.994

Lock cores pages 10.24–10.25
Accessories pages 10.30–10.31
Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 10.29
