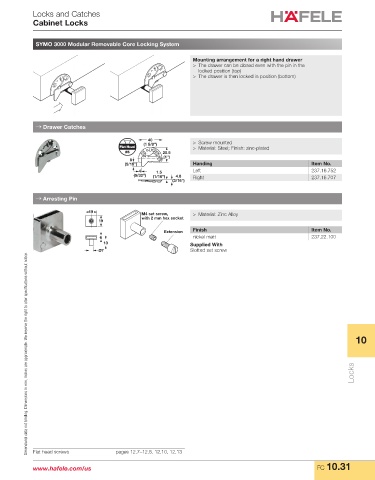

P. 1053

Locks and Catches
            Cabinet Locks


             SYMO 3000 Modular Removable Core Locking System


                                                                Mounting arrangement for a right hand drawer
                                                                >  The drawer can be closed even with the pin in the
                                                                  locked position (top)
                                                                >  The drawer is then locked in position (bottom)








             → Drawer Catches

                                                 40             >  Screw mounted
                                                (1 5/8")
                                        Flat Head               >  Material: Steel; Finish: zinc-plated
                                          #5          25.5
                                                      (1")
                                           8
                                          (5/16")               Handing                                Item No.
                                              4     1.5         Left                                   237.16.752
                                             (5/32")  (1/16")  4.8  Right                              237.16.707
                                                         (3/16")

             → Arresting Pin

                              19               M4 set screw,    >  Material: Zinc Alloy
                                               with 2 mm hex socket
                                 19
                                                       Extension  Finish                               Item No.
                                  6                             nickel matt                            237.22.100
                                   13                          Supplied With
                                 Ø7                            Slotted set screw
          Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.















                                                                                                                     10




                                                                                                                    Locks
















            Flat head screws           pages 12.7–12.8, 12.10, 12.13

            www.hafele.com/us                                                                            FC 10.31
