Locks and Catches
Cabinet Locks

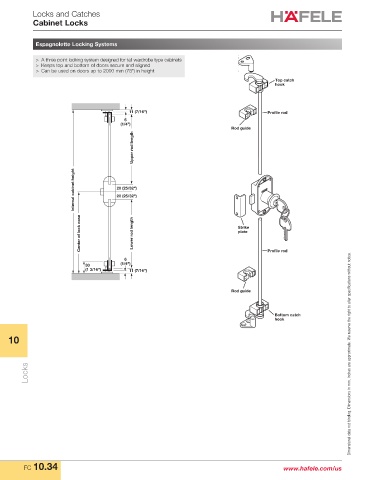

Espagnolette Locking Systems

> A three point locking system designed for tall wardrobe type cabinets
> Keeps top and bottom of doors secure and aligned
> Can be used on doors up to 2000 mm (78") in height
Top catch
hook

11 (7/16") Profile rod
6
(1/4")
Rod guide
Upper rod length

Internal cabinet height 20 (25/32")

20 (25/32")

Center of lock case Lower rod length Strike

plate

6 Profile rod
30 (1/4")
(1 3/16") 11 (7/16")

Rod guide

Bottom catch
hook

10 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
