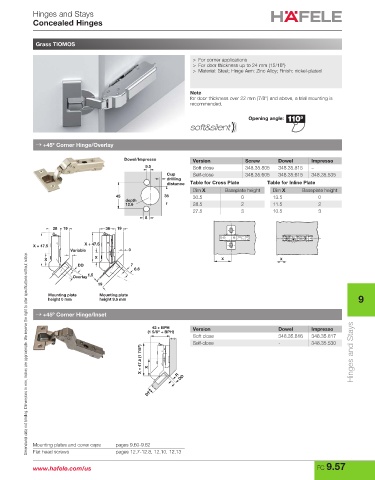

Hinges and Stays
Concealed Hinges

Grass TIOMOS

> For corner applications
> For door thickness up to 24 mm (15/16")
> Material: Steel; Hinge Arm: Zinc Alloy; Finish: nickel-plated

Note
for door thickness over 22 mm (7/8") and above, a trial mounting is
recommended.

Opening angle:

→ +45º Corner Hinge/Overlay

Dowel/Impresso Version Screw Dowel Impresso
9.5 Soft close 348.35.805 348.35.815 –
Cup Self-close 348.35.605 348.35.615 348.35.535
drilling
distance Table for Cross Plate Table for Inline Plate
Dim X Baseplate height Dim X Baseplate height
45 35 30.5 0 13.5 0
depth
12.6 28.5 2 11.5 2
27.5 3 10.5 3
8
28 19 36 19

X + 47.5 X + 47.5
Variable 0
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
X X X X
DD 7
6.6
1.5
Overlay
19
Mounting plate Mounting plate
height 0 mm height 9.5 mm 9
→ +45º Corner Hinge/Inset

42 + BPH Version Dowel Impresso
(1 5/8" + BPH)
Soft close 348.35.816 348.35.817
Self-close - 348.35.530
X = 47.5 (1 7/8") Hinges and Stays

X
R DD

DT

Mounting plates and cover caps pages 9.60-9.62
Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 9.57
