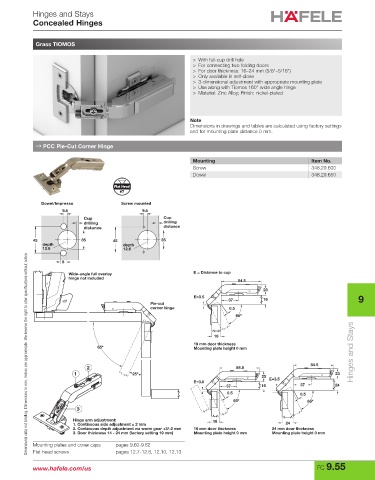

Hinges and Stays
Concealed Hinges

Grass TIOMOS

> With full-cup drill hole
> For connecting two folding doors
> For door thickness: 16–24 mm (5/8"–5/16")
> Only available in self-close
> 3-dimensional adjustment with appropriate mounting plate
> Use along with Tiomos 160° wide angle hinge
> Material: Zinc Alloy; Finish: nickel-plated

Note
Dimensions in drawings and tables are calculated using factory settings
and for mounting plate distance 0 mm.

→ PCC Pie-Cut Corner Hinge

Mounting Item No.
Screw 348.29.600
Dowel 348.29.650

Flat Head
#7
Dowel/Impresso Screw mounted
9.5 9.5
Cup Cup
drilling drilling
distance distance
45 35 45 35
depth depth
12.6 12.6
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
8
Wide-angle full overlay E = Distance to cup
hinge not included
84.5
23
E=3.5 9
37 19
Pie-cut
corner hinge 0.5
65º

19
19 mm door thickness
65º Mounting plate height 0 mm Hinges and Stays

84.5
2 84.5
1 25º 23
23 E=3.5
E=3.5
37 16 37 24
0.5 0.5
65º 65º
3
Hinge arm adjustment: 16
1. Continuous side adjustment ± 2 mm 24
2. Continuous depth adjustment via worm gear +3/-2 mm 16 mm door thickness 24 mm door thickness
3. Door thickness 14 - 24 mm (factory setting 19 mm) Mounting plate height 0 mm Mounting plate height 0 mm
Mounting plates and cover caps pages 9.60-9.62
Flat head screws pages 12.7-12.8, 12.10, 12.13
