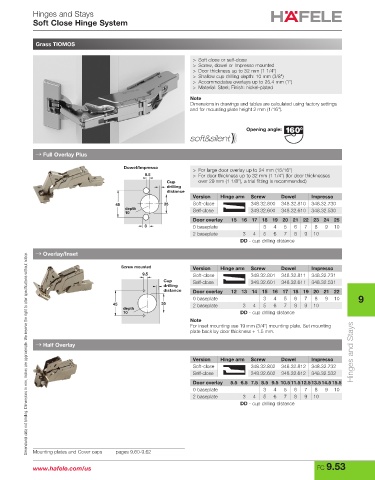

Hinges and Stays
Soft Close Hinge System

Grass TIOMOS

> Soft close or self-close
> Screw, dowel or Impresso mounted
> Door thickness up to 32 mm (1 1/4")
> Shallow cup drilling depth: 10 mm (3/8")
> Accommodates overlays up to 25.4 mm (1")
> Material: Steel; Finish: nickel-plated
Note
Dimensions in drawings and tables are calculated using factory settings
and for mounting plate height 2 mm (1/16").

Opening angle:

→ Full Overlay Plus

Dowel/Impresso > For large door overlay up to 24 mm (15/16")
9.5 > For door thickness up to 32 mm (1 1/4") (for door thicknesses
Cup over 29 mm (1 1/8"), a trial fitting is recommended)
drilling
distance
Version Hinge arm Screw Dowel Impresso
45 35 Soft-close 348.32.800 348.32.810 348.32.730
depth Self-close 348.32.600 348.32.610 348.32.530
10
Door overlay 15 16 17 18 19 20 21 22 23 24 25
8 0 baseplate 3 4 5 6 7 8 9 10
2 baseplate 3 4 5 6 7 8 9 10
DD - cup drilling distance

→ Overlay/Inset
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Screw mounted Version Hinge arm Screw Dowel Impresso
9.5 Soft-close 348.32.801 348.32.811 348.32.731
Cup Self-close 348.32.601 348.32.611 348.32.531
drilling
distance Door overlay 12 13 14 15 16 17 18 19 20 21 22
0 baseplate 3 4 5 6 7 8 9 10 9
45 35 2 baseplate 3 4 5 6 7 8 9 10
depth
10 DD - cup drilling distance
Note
For inset mounting use 19 mm (3/4") mounting plate. Set mounting
plate back by door thickness + 1.5 mm.

→ Half Overlay

Version Hinge arm Screw Dowel Impresso Hinges and Stays
Soft-close 348.32.802 348.32.812 348.32.732
Self-close 348.32.602 348.32.612 348.32.532
Door overlay 5.5 6.5 7.5 8.5 9.5 10.5 11.5 12.5 13.5 14.5 15.5
0 baseplate 3 4 5 6 7 8 9 10
2 baseplate 3 4 5 6 7 8 9 10
DD - cup drilling distance

Mounting plates and Cover caps pages 9.60-9.62
