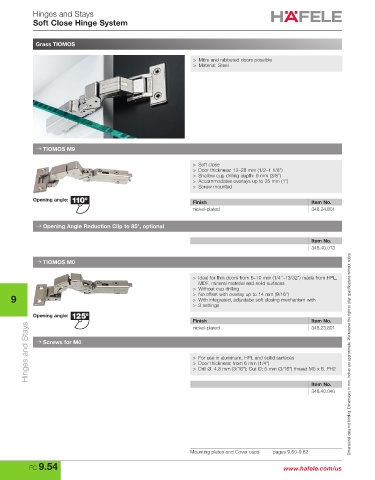

P. 872
Hinges and Stays
Soft Close Hinge System
Grass TIOMOS
> Mitre and rabbeted doors possible
> Material: Steel
→ TIOMOS M9
> Soft close
> Door thickness: 12–28 mm (1/2–1 1/8")
> Shallow cup drilling depth: 9 mm (3/8")
> Accommodates overlays up to 25 mm (1")
> Screw mounted
Opening angle:
Finish Item No.
nickel-plated 348.24.801
→ Opening Angle Reduction Clip to 85°, optional
Item No.
348.40.013
→ TIOMOS M0
> Ideal for thin doors from 6–10 mm (1/4"–13/32") made from HPL,
MDF, mineral material and solid surfaces
> Without cup drilling
9 > No offset with overlay up to 14 mm (9/16")
> With integrated, adjustabe soft closing mechanism with
> 3 settings
Opening angle:
Finish Item No.
Hinges and Stays → Screws for M0 > For use in aluminum, HPL and sollid surfaces Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
348.23.801
nickel-plated
> Door thickness: from 6 mm (1/4")
> Drill Ø: 4.8 mm (3/16"); Cut Ø: 5 mm (3/16") thread M5 x 6, PH2
Item No.
348.40.040
Mounting plates and Cover caps pages 9.60-9.62
FC 9.54 www.hafele.com/us
