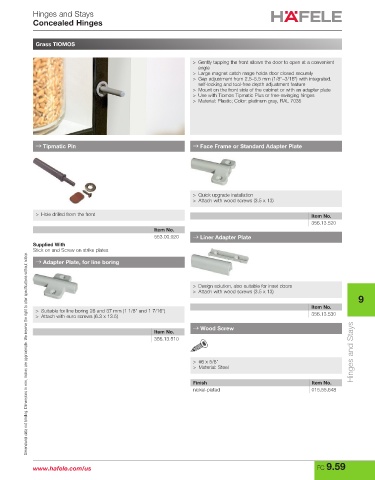

P. 877
Hinges and Stays
Concealed Hinges
Grass TIOMOS
> Gently tapping the front allows the door to open at a convenient
angle
> Large magnet catch range holds door closed securely
> Gap adjustment from 2.5–5.5 mm (1/8"–3/16") with integrated,
self-locking and tool-free depth adjustment feature
> Mount on the front side of the cabinet or with an adapter plate
> Use with Tiomos Tipmatic Plus or free-swinging hinges
> Material: Plastic; Color: platinum gray, RAL 7035
→ Tipmatic Pin → Face Frame or Standard Adapter Plate
> Quick upgrade installation
> Attach with wood screws (3.5 x 13)
> Hole drilled from the front Item No.
356.13.520
Item No.
553.00.020 → Liner Adapter Plate
Supplied With
Stick on and Screw on strike plates
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Adapter Plate, for line boring
> Design solution, also suitable for inset doors
> Attach with wood screws (3.5 x 13)
9
Item No.
> Suitable for line boring 28 and 37 mm (1 1/8" and 1 7/16")
> Attach with euro screws (6.3 x 13.5) 356.13.530
Hinges and Stays
→ Wood Screw
Item No.
356.13.510
> #6 x 5/8"
> Material: Steel
Finish Item No.
nickel-plated 015.55.648
www.hafele.com/us FC 9.59
