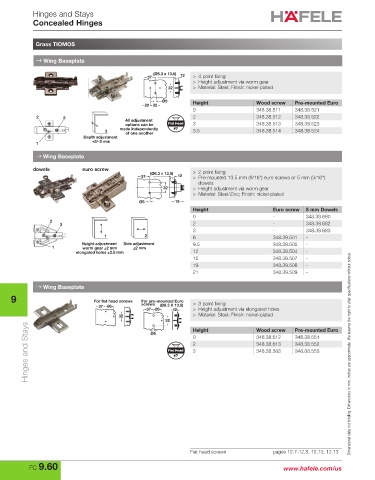

Page 878 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Hinges and Stays
Concealed Hinges

Grass TIOMOS

→ Wing Baseplate
2 (Ø6.3 x 13.5)
3 37 12 > 4 point fixing
> Height adjustment via worm gear
1 2 32 > Material: Steel; Finish: nickel-plated
Height adjustment Side adjustment
1 worm gear ±2 mm ±2 mm Ø5
elongated holes ±2.5 mm 20 32 Height Wood screw Pre-mounted Euro
0 348.38.511 348.38.521
2 3 2 348.38.512 348.38.522
All adjustment
options can be Flat Head 3 348.38.513 348.38.523
made independently #7
3 of one another 3.5 348.38.514 348.38.524
Depth adjustment
1 +3/-2 mm
→ Wing Baseplate

dowels euro screw
(Ø6.3 x 13.5) > 2 point fixing
37 12 > Pre-mounted 13.5 mm (9/16") euro screws or 5 mm (3/16")
dowels
32 > Height adjustment via worm gear
> Material: Steel/Zinc; Finish: nickel-plated
Ø5 19
Height Euro screw 5 mm Dowels
0 - 348.38.680
2
3 2 - 348.38.682
3 - 348.38.683
1 2 6 348.39.501 -
Height adjustment Side adjustment 9.5 348.39.505 -
1 worm gear ±2 mm ±2 mm
elongated holes ±2.5 mm 12 348.39.504 -
15 348.39.507 -
2 3 19 348.39.508 -
All adjustment
options can be 21 348.39.509 -
made independently
3 of one another
→ Wing Baseplate Depth adjustment
1 +3/-2 mm
9 For flat head screws For pre-mounted Euro
37 26 screws (Ø6.3 X 13.5) > 3 point fixing
37 26 12 > Height adjustment via elongated holes
32 > Material: Steel; Finish: nickel-plated
32 Height Wood screw Pre-mounted Euro
Hinges and Stays Flat Head 0 2 3 348.38.612 348.38.551 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Ø5
348.38.613
348.38.552
348.38.553
348.38.583
#7

Flat head screws pages 12.7-12.8, 12.10, 12.13
FC 9.60 www.hafele.com/us
