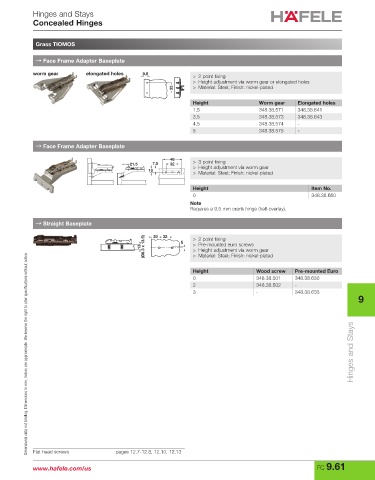

Hinges and Stays
Concealed Hinges

Grass TIOMOS

→ Face Frame Adapter Baseplate
worm gear elongated holes 9.5 > 2 point fixing
> Height adjustment via worm gear or elongated holes
32 > Material: Steel; Finish: nickel-plated
Height Worm gear Elongated holes
1.5 348.38.571 348.38.641
3.5 348.38.573 348.38.643
4.5 348.38.574 -
5 348.38.575 -

→ Face Frame Adapter Baseplate

48
21.5 7.5 32 > 3 point fixing
> Height adjustment via worm gear
10
> Material: Steel; Finish: nickel-plated
Height Item No.
0 348.38.660
Note
Requires a 9.5 mm crank hinge (half-overlay).

→ Straight Baseplate

(Ø6.3 x 13.5) 20 32 5 > 2 point fixing
> Pre-mounted euro screws
13 > Height adjustment via worm gear
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Material: Steel; Finish: nickel-plated

Height Wood screw Pre-mounted Euro
0 348.38.501 348.38.630
2 348.38.502 -
3 - 348.38.633
9

Hinges and Stays

Flat head screws pages 12.7-12.8, 12.10, 12.13

www.hafele.com/us FC 9.61
