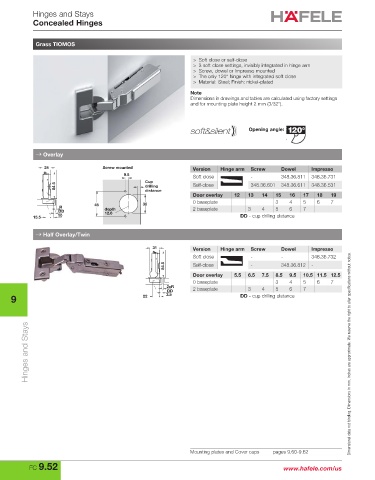

Hinges and Stays
Concealed Hinges

Grass TIOMOS

> Soft close or self-close
> 3 soft close settings, invisibly integrated in hinge arm
> Screw, dowel or Impresso mounted
> The only 120° hinge with integrated soft close
> Material: Steel; Finish: nickel-plated
Note
Dimensions in drawings and tables are calculated using factory settings
and for mounting plate height 2 mm (3/32").

Opening angle:

→ Overlay

24 Screw mounted Version Hinge arm Screw Dowel Impresso
9.5 Soft close - 348.36.811 348.36.731
Cup
84.5 drilling Self-close 348.36.601 348.36.611 348.36.531
distance
Door overlay 12 13 14 15 16 17 18 19
0 baseplate 3 4 5 6 7
45 35
R depth 2 baseplate 3 4 5 6 7
DD 12.6
15.5 10 DD - cup drilling distance
→ Half Overlay/Twin

31 Version Hinge arm Screw Dowel Impresso
Soft close - - 348.36.732
84.5 Self-close - 348.36.812 -

Door overlay 5.5 6.5 7.5 8.5 9.5 10.5 11.5 12.5
0 baseplate 3 4 5 6 7
2xR 2 baseplate 3 4 5 6 7
DD
9 22 3.5 DD - cup drilling distance

Hinges and Stays Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Mounting plates and Cover caps pages 9.60-9.62
