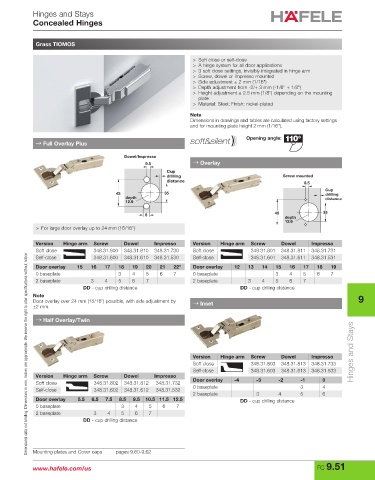

Hinges and Stays
Concealed Hinges

Grass TIOMOS

> Soft close or self-close
> A hinge system for all door applications
> 3 soft close settings, invisibly integrated in hinge arm
> Screw, dowel or Impresso mounted
> Side adjustment ± 2 mm (1/16")
> Depth adjustment from -2/+ 3 mm (-1/6" + 1/8")
> Height adjustment ± 2.5 mm (1/8") depending on the mounting
plate
> Material: Steel; Finish: nickel-plated

Note
Dimensions in drawings and tables are calculated using factory settings
and for mounting plate height 2 mm (1/16").

Opening angle:
→ Full Overlay Plus
Dowel/Impresso
9.5 → Overlay
Cup
drilling Screw mounted
distance
9.5
Cup
45 35 drilling
depth distance
12.6
45 35
8
depth
12.6
> For large door overlay up to 24 mm (15/16")
Version Hinge arm Screw Dowel Impresso Version Hinge arm Screw Dowel Impresso
Soft close 348.31.800 348.31.810 348.31.730 Soft close 348.31.801 348.31.811 348.31.731
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Self-close 348.31.600 348.31.610 348.31.530 Self-close 348.31.601 348.31.611 348.31.531
Door overlay 15 16 17 18 19 20 21 22* Door overlay 12 13 14 15 16 17 18 19
0 baseplate 3 4 5 6 7 0 baseplate 3 4 5 6 7
2 baseplate 3 4 5 6 7 2 baseplate 3 4 5 6 7
DD - cup drilling distance DD - cup drilling distance
Note
Door overlay over 24 mm (15/16") possible, with side adjustment by → Inset 9
±2 mm.
→ Half Overlay/Twin
Hinges and Stays

Version Hinge arm Screw Dowel Impresso
Soft close 348.31.803 348.31.813 348.31.733
Self-close 348.31.603 348.31.613 348.31.533
Version Hinge arm Screw Dowel Impresso
Soft close 348.31.802 348.31.812 348.31.732 Door overlay -4 -3 -2 -1 0
Self-close 348.31.602 348.31.612 348.31.532 0 baseplate 3 4
2 baseplate 3 4 5 6
Door overlay 5.5 6.5 7.5 8.5 9.5 10.5 11.5 12.5 DD - cup drilling distance
0 baseplate 3 4 5 6 7
2 baseplate 3 4 5 6 7
DD - cup drilling distance

Mounting plates and Cover caps pages 9.60-9.62

www.hafele.com/us FC 9.51
