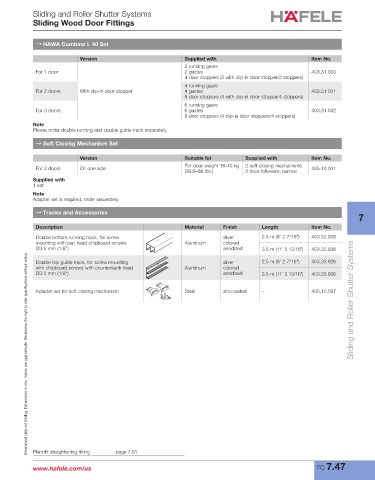

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Combino L 40 Set

Version Supplied with Item No.
2 running gears
For 1 door 2 guides 403.31.000
4 door stoppers (2 with clip-in door stopper/2 stoppers)
4 running gears
For 2 doors With clip-in door stopper 4 guides 403.31.001
8 door stoppers (4 with clip-in door stopper/4 stoppers)
6 running gears
For 3 doors 6 guides 403.31.002
8 door stoppers (4 clip-in door stoppers/4 stoppers)
Note
Please order double running and double guide track separately.
→ Soft Closing Mechanism Set

Version Suitable for Supplied with Item No.
For door weight 18-40 kg 2 soft closing mechanisms
For 2 doors On one side 405.10.001
(39.6–88 lbs.) 2 door followers, narrow
Supplied with
1 set
Note
Adapter set is required, order separately.

→ Tracks and Accessories
7
Description Material Finish Length Item No.
Double bottom running track, for screw silver 2.5 m (8' 2 7/16") 403.32.926
mounting with pan head chipboard screws Aluminum colored
Ø3.5 mm (1/8") anodized 3.5 m (11' 5 13/16") 403.32.936
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Double top guide track, for screw mounting silver 2.5 m (8' 2 7/16") 403.33.926
with chipboard screws with countersunk head Aluminum colored
Ø3.5 mm (1/8") anodized 3.5 m (11' 5 13/16") 403.33.936

Adapter set for soft closing mechanism Steel zinc-plated – 405.10.097 Sliding and Roller Shutter Systems

Planofit straightening fitting page 7.91

www.hafele.com/us FC 7.47
