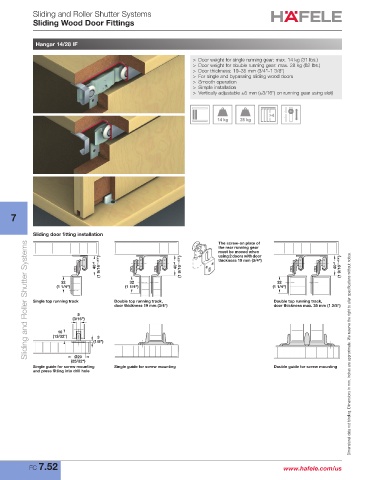

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

Hangar 14/28 IF

> Door weight for single running gear: max. 14 kg (31 lbs.)
> Door weight for double running gear: max. 28 kg (62 lbs.)
> Door thickness: 19–35 mm (3/4"–1 3/8")
> For single and bypassing sliding wood doors
> Smooth operation
> Simple installation
> Vertically adjustable ±5 mm (±3/16") on running gear using slot)

7

Sliding door fitting installation
Sliding and Roller Shutter Systems
The screw-on plate of
the rear running gear
must be moved when
using 2 doors with door
40 ±5 (1 9/16" ±3/6" ) 40 ±5 (1 9/16" ±3/6" ) thickness 19 mm (3/4") 40 ±5 (1 9/16" ±3/6" )

32 32 32
(1 1/4") (1 1/4") (1 1/4")

Single top running track Double top running track, Double top running track,
door thickness 19 mm (3/4") door thickness max. 35 mm (1 3/8")
5
(3/16")
10
(13/32") 3
(1/8")

Ø20 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(25/32")
Single guide for screw mounting Single guide for screw mounting Double guide for screw mounting
and press fitting into drill hole

FC 7.52 www.hafele.com/us
