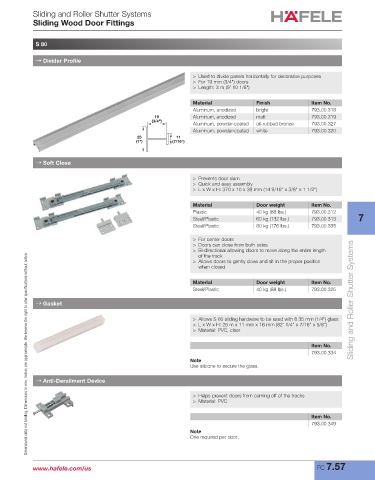

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

S 80

→ Divider Profile

> Used to divide panels horizontally for decorative purposes
> For 19 mm (3/4") doors
> Length: 3 m (9’ 10 1/8")

Material Finish Item No.
Aluminum, anodized bright 793.00.318
19 Aluminum, anodized matt 793.00.319
(3/4")
Aluminum, powder-coated oil-rubbed bronze 793.00.327
Aluminum, powder-coated white 793.00.320
25 11
(1") (7/16")

→ Soft Close

> Prevents door slam
> Quick and easy assembly
> L x W x H: 370 x 10 x 38 mm (14 9/16" x 3/8" x 1 1/2")

Material Door weight Item No.
Plastic 40 kg (88 lbs.) 793.00.312
Steel/Plastic 60 kg (132 lbs.) 793.00 313 7
Steel/Plastic 80 kg (176 lbs.) 793.00.335

> For center doors
> Doors can close from both sides
> Bi-directional allowing doors to move along the entire length
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
of the track
> Allows doors to gently close and sit in the proper position
when closed

Material Door weight Item No.
Steel/Plastic 40 kg (88 lbs.) 793.00.325

→ Gasket Sliding and Roller Shutter Systems

> Allows S 80 sliding hardware to be used with 6.35 mm (1/4") glass
> L x W x H: 25 m x 11 mm x 16 mm (82' 1/4" x 7/16" x 5/8")
> Material: PVC, clear

Item No.
793.00.334
Note
Use silicone to secure the glass.

→ Anti-Derailment Device

> Helps prevent doors from coming off of the tracks
> Material: PVC

Item No.
793.00.349
Note
One required per door.

www.hafele.com/us FC 7.57
