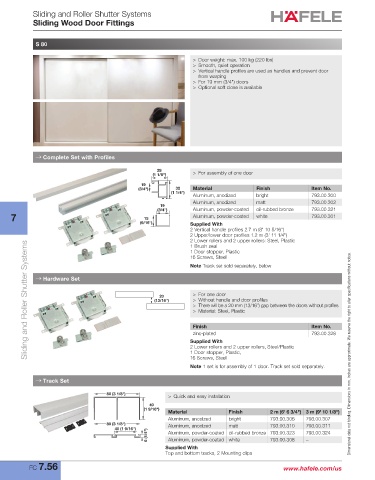

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

S 80

> Door weight: max. 100 kg (220 lbs)
> Smooth, quiet operation
> Vertical handle profiles are used as handles and prevent door
from warping
> For 19 mm (3/4") doors
> Optional soft close is available

→ Complete Set with Profiles

28
(1 1/8") > For assembly of one door
19
(3/4") 32 Material Finish Item No.
(1 1/4")
Aluminum, anodized bright 793.00.300
Aluminum, anodized matt 793.00.302
19
(3/4") Aluminum, powder-coated oil-rubbed bronze 793.00.321
7 15 Aluminum, powder-coated white 793.00.301
(9/16") Supplied With
2 Vertical handle profiles 2.7 m (8' 10 5/16")
2 Upper/lower door profiles 1.2 m (3' 11 1/4")
2 Lower rollers and 2 upper rollers: Steel, Plastic
Sliding and Roller Shutter Systems
1 Brush seal
1 Door stopper, Plastic
16 Screws, Steel
Note Track set sold separately, below
→ Hardware Set

20 > For one door
(13/16") > Without handle and door profiles
> There will be a 20 mm (13/16") gap between the doors without profiles
> Material: Steel, Plastic

Finish Item No.
zinc-plated 793.00.328
Supplied With
2 Lower rollers and 2 upper rollers, Steel/Plastic
1 Door stopper, Plastic, Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
16 Screws, Steel
Note 1 set is for assembly of 1 door. Track set sold separately.

→ Track Set

80 (3 1/8") > Quick and easy installation
40
(1 9/16")
Material Finish 2 m (6' 6 3/4") 3 m (9' 10 1/8")
Aluminum, anodized bright 793.00.306 793.00.307
80 (3 1/8") Aluminum, anodized matt 793.00.310 793.00.311
40 (1 9/16")
6 (1/4") Aluminum, powder-coated oil-rubbed bronze 793.00.323 793.00.324
793.00.308
–
Aluminum, powder-coated white
Supplied With
Top and bottom tracks, 2 Mounting clips
FC 7.56 www.hafele.com/us
