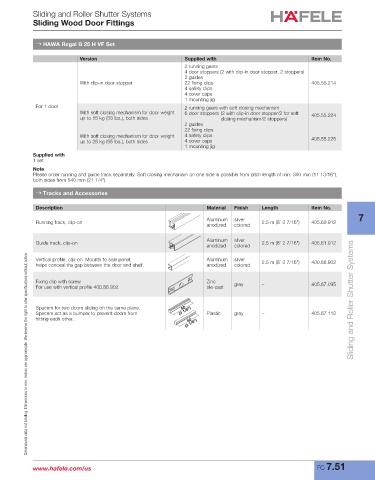

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Regal B 25 H VF Set

Version Supplied with Item No.
2 running gears
4 door stoppers (2 with clip-in door stopper, 2 stoppers)
2 guides
With clip-in door stopper 22 fixing clips 405.55.214
4 safety clips
4 cover caps
1 mounting jig
For 1 door 2 running gears with soft closing mechanism
With soft closing mechanism for door weight 6 door stoppers (2 with clip-in door stopper/2 for soft 405.55.224
up to 15 kg (33 lbs.), both sides closing mechanism/2 stoppers)
2 guides
22 fixing clips
With soft closing mechanism for door weight 4 safety clips 405.55.225
up to 25 kg (55 lbs.), both sides 4 cover caps
1 mounting jig
Supplied with
1 set
Note
Please order running and guide track separately. Soft closing mechanism on one side is possible from pitch length of min. 300 mm (11 13/16"),
both sides from 540 mm (21 1/4").

→ Tracks and Accessories

Description Material Finish Length Item No.

Running track, clip-on Aluminum silver 2.5 m (8' 2 7/16") 405.69.912 7
anodized colored
Aluminum silver
Guide track, clip-on 2.5 m (8' 2 7/16") 405.61.912
anodized colored
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Vertical profile, clip-on. Mounts to side panel, Aluminum silver
helps conceal the gap between the door and shelf. anodized colored 2.5 m (8' 2 7/16") 400.88.902

Fixing clip with screw Zinc
For use with vertical profile 400.88.902. die-cast gray – 405.67.095

Spacers for two doors sliding on the same plane. 80 Sliding and Roller Shutter Systems
Spacers act as a bumper to prevent doors from (3 1/8") Plastic gray – 405.67.110
hitting each other. 80
(3 1/8")

www.hafele.com/us FC 7.51
