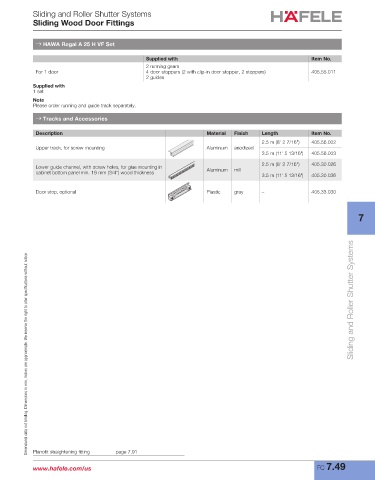

P. 569
Sliding and Roller Shutter Systems
Sliding Wood Door Fittings
→ HAWA Regal A 25 H VF Set
Supplied with Item No.
2 running gears
For 1 door 4 door stoppers (2 with clip-in door stopper, 2 stoppers) 405.55.011
2 guides
Supplied with
1 set
Note
Please order running and guide track separately.
→ Tracks and Accessories
Description Material Finish Length Item No.
2.5 m (8' 2 7/16") 405.56.002
Upper track, for screw mounting Aluminum anodized
3.5 m (11' 5 13/16") 405.56.003
Lower guide channel, with screw holes, for glue mounting in 2.5 m (8' 2 7/16") 405.30.026
cabinet bottom panel min. 19 mm (3/4") wood thickness Aluminum mill
3.5 m (11' 5 13/16") 405.30.036
Door stop, optional Plastic gray – 405.33.030
7
Sliding and Roller Shutter Systems
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Planofit straightening fitting page 7.91
www.hafele.com/us FC 7.49
