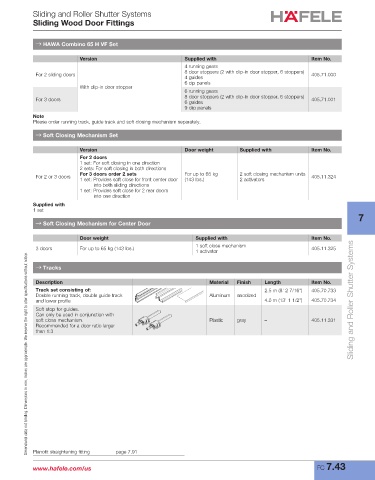

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Combino 65 H VF Set

Version Supplied with Item No.
4 running gears
8 door stoppers (2 with clip-in door stopper, 6 stoppers)
For 2 sliding doors 405.71.000
4 guides
6 cip panels
With clip-in door stopper
6 running gears
8 door stoppers (2 with clip-in door stopper, 6 stoppers)
For 3 doors 405.71.001
6 guides
9 clip panels
Note
Please order running track, guide track and soft closing mechanism separately.
→ Soft Closing Mechanism Set

Version Door weight Supplied with Item No.
For 2 doors
1 set: For soft closing in one direction
2 sets: For soft closing in both directions
For 3 doors order 2 sets For up to 65 kg 2 soft closing mechanism units
For 2 or 3 doors 405.11.324
1 set: Provides soft close for front center door (143 lbs.) 2 activators
into both sliding directions
1 set: Provides soft close for 2 rear doors
into one direction
Supplied with
1 set
7
→ Soft Closing Mechanism for Center Door

Door weight Supplied with Item No.
1 soft close mechanism
3 doors For up to 65 kg (143 lbs.) 405.11.325
1 activator
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ Tracks

Description Material Finish Length Item No.
Track set consisting of: 2.5 m (8' 2 7/16") 405.70.733
Double running track, double guide track Aluminum anodized
and lower profile 4.0 m (13' 1 1/2") 405.70.734 Sliding and Roller Shutter Systems
Soft stop for guides.
Can only be used in conjunction with
soft close mechanism. Plastic gray – 405.11.331
Recommended for a door ratio larger
than 1:3

Planofit straightening fitting page 7.91

www.hafele.com/us FC 7.43
