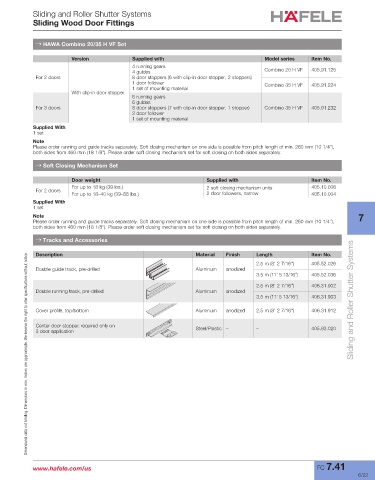

Page 561 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Combino 20/35 H VF Set

Version Supplied with Model series Item No.
4 running gears
4 guides Combino 20 H VF 405.91.125
For 2 doors 8 door stoppers (6 with clip-in door stopper, 2 stoppers)
1 door follower Combino 35 H VF 405.91.224
1 set of mounting material
With clip-in door stopper
6 running gears
6 guides
For 3 doors 8 door stoppers (7 with clip-in door stopper, 1 stopper) Combino 35 H VF 405.91.232
2 door follower
1 set of mounting material
Supplied With
1 set
Note
Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm (10 1/4"),
both sides from 460 mm (18 1/8"). Please order soft closing mechanism set for soft closing on both sides separately.

→ Soft Closing Mechanism Set

Door weight Supplied with Item No.
For up to 18 kg (39 lbs.) 2 soft closing mechanism units 405.10.006
For 2 doors
For up to 18–40 kg (39–88 lbs.) 2 door followers, narrow 405.10.004
Supplied With
1 set
Note 7
Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm (10 1/4"),
both sides from 460 mm (18 1/8"). Please order soft closing mechanism set for soft closing on both sides separately.
→ Tracks and Accessories

Description Material Finish Length Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2.5 m (8' 2 7/16") 405.52.026
Double guide track, pre-drilled Aluminum anodized
3.5 m (11' 5 13/16") 405.52.036

2.5 m (8' 2 7/16") 406.31.902
Double running track, pre-drilled Aluminum anodized
3.5 m (11' 5 13/16") 406.31.903 Sliding and Roller Shutter Systems

Cover profile, top/bottom Aluminum anodized 2.5 m (8' 2 7/16") 406.31.912

Center door stopper, required only on
3 door application Steel/Plastic – – 405.93.020

www.hafele.com/us FC 7.41
6/22
