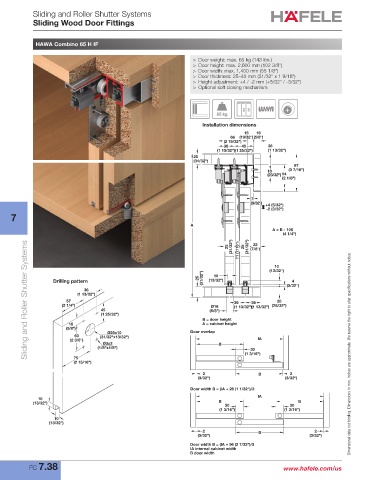

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

HAWA Combino 65 H IF

> Door weight: max. 65 kg (143 lbs.)
> Door height: max. 2,600 mm (102 3/8")
> Door width: max. 1,400 mm (55 1/8")
> Door thickness: 25–40 mm (31/32" x 1 9/16")
> Height adjustment: +4 / -2 mm (+5/32" / -3/32")
> Optional soft closing mechanism

Installation dimensions
15 16
66 (19/32")(5/8")
(2 19/32")
36 45 36
(1 13/32")(1 25/32") (1 13/32")
25
(31/32")
87
18 (3 7/16")
(23/32") 54
(2 1/8")

7
(9/32") +4 (5/32")
-2 (3/32")
7
A
A = B - 108
(4 1/4")
Sliding and Roller Shutter Systems
23
25 (31/32") 11 (7/16") 25 (31/32") (7/8")

10
(13/32")
25 (31/32") 10
Drilling pattern (13/32") (5/32")
4
36
(1 13/32")
57 36 36 20
(2 1/4") Ø16 (1 13/32")(1 13/32") (25/32")
45 (5/8")
(1 25/32")
B = door height
16 A = cabinet height
(5/8")
Ø25x10 Door overlap
60 (31/32"x13/32")
(2 3/8") IA
Ø3x3 B
(1/8"x1/8") 30
(1 3/16") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
75
(2 15/16")
2 B 2
(3/32") (3/32")
Door width B = (IA + 26 (1 1/32")/2
IA
10
(13/32") B 30 30 B
(1 3/16") (1 3/16")
10
(13/32")
2 B 2
(3/32") (3/32")
Door width B = (IA + 56 (2 7/32")/3
IA internal cabinet width
B door width
