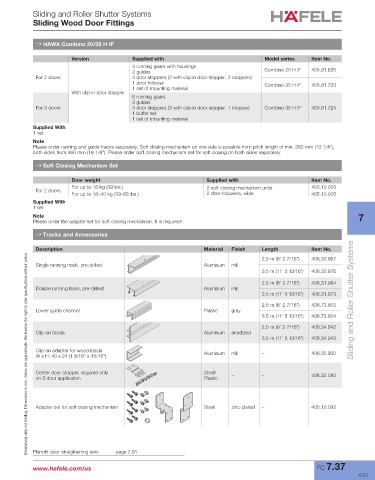

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Combino 20/35 H IF

Version Supplied with Model series Item No.
4 running gears with housings
2 guides Combino 20 H IF 405.91.625
For 2 doors 4 door stoppers (2 with clip-in door stopper, 2 stoppers)
1 door follower Combino 35 H IF 405.91.723
1 set of mounting material
With clip-in door stopper
6 running gears
3 guides
For 3 doors 4 door stoppers (3 with clip-in door stopper, 1 stopper) Combino 35 H IF 405.91.724
1 buffer set
1 set of mounting material
Supplied With
1 set
Note
Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm (10 1/4"),
both sides from 460 mm (18 1/8"). Please order soft closing mechanism set for soft closing on both sides separately.

→ Soft Closing Mechanism Set

Door weight Supplied with Item No.
For up to 18 kg (39 lbs.) 2 soft closing mechanism units 405.10.003
For 2 doors
For up to 18–40 kg (39–88 lbs.) 2 door followers, wide 405.10.005
Supplied With
1 set
Note 7
Please order the adapter set for soft closing mechanism. It is required!

→ Tracks and Accessories

Description Material Finish Length Item No.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
2.5 m (8' 2 7/16") 406.30.967
Single running track, pre-drilled Aluminum mill
3.5 m (11' 5 13/16") 406.30.976
2.5 m (8' 2 7/16") 406.31.964
Double running track, pre-drilled Aluminum mill
3.5 m (11' 5 13/16") 406.31.973

2.5 m (8' 2 7/16") 406.73.803 Sliding and Roller Shutter Systems
Lower guide channel Plastic gray
3.5 m (11' 5 13/16") 406.73.804
2.5 m (8' 2 7/16") 406.34.942
Clip-on fascia Aluminum anodized
3.5 m (11' 5 13/16") 406.34.943

Clip-on adapter for wood fascia Aluminum mill – 406.35.900
W x H: 40 x 24 (1 9/16" x 15/16")

Center door stopper, required only Steel/ – – 406.32.080
on 3 door application Plastic

Adapter set for soft closing mechanism Steel zinc-plated – 405.10.092

Planofit door straightening sets page 7.91

www.hafele.com/us FC 7.37
4/22
