Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

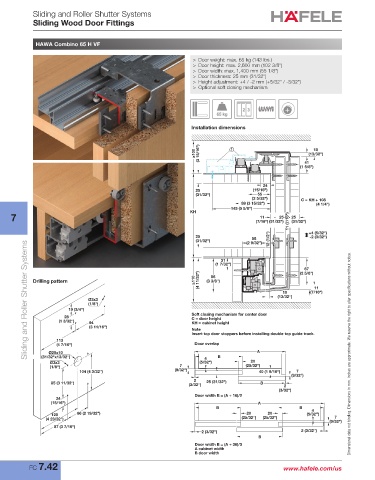

HAWA Combino 65 H VF

> Door weight: max. 65 kg (143 lbs.)
> Door height: max. 2,600 mm (102 3/8")
> Door width: max. 1,400 mm (55 1/8")
> Door thickness: 25 mm (31/32")
> Height adjustment: +4 / -2 mm (+5/32" / -3/32")
> Optional soft closing mechanism

Installation dimensions

10
≥100 (3 15/16") (13/32")
41
(1 5/8")

24
25 (15/16")
(31/32") 55
(2 5/32") C = KH + 108
88 (3 15/32") (4 1/4")
143 (5 5/8")
KH
7 (7/16") (31/32") 11 (7/16") 25
25
11
(31/32")
25 58 +4 (5/32")
-2 (3/32")
(31/32") (2 9/32") 12 (1/2")
Sliding and Roller Shutter Systems
31
(1 7/32")
67
(2 5/8")
(4 11/32") 86
Drilling pattern ≥110 (3 3/8")
11
10 (7/16")
(13/32")
Ø3x3
(1/8")
19 (3/4")
Soft closing mechanism for center door
28 C = door height
(1 3/32") 94 KH = cabinet height
(3 11/16")
Note
Insert top door stoppers before installing double top guide track.
113
(4 7/16") Door overlap
Ø25x10 A Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
(31/32"x13/32") 4 B
Ø3x3 (5/32") 20
(1/8") 7 (25/32")
104 (4 3/32") (9/32") 40 (1 9/16") 7
(9/32")
2
85 (3 11/32") (3/32") 25 (31/32") B 2
(3/32")
Door width B = (A + 16)/2
24
(15/16") A
B B 4
120 66 (2 19/32") 20 20 (5/32")
(4 23/32") (25/32") (25/32") 7
(9/32")
87 (3 7/16")
2 (3/32") 2 (3/32")
B
Door width B = (A + 36)/3
A cabinet width
B door width
FC 7.42 www.hafele.com/us
