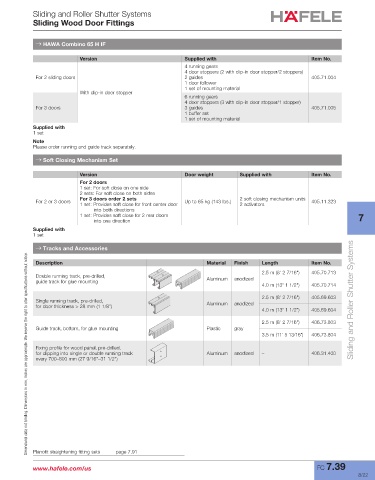

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Combino 65 H IF

Version Supplied with Item No.
4 running gears
4 door stoppers (2 with clip-in door stopper/2 stoppers)
For 2 sliding doors 2 guides 405.71.004
1 door follower
1 set of mounting material
With clip-in door stopper
6 running gears
4 door stoppers (3 with clip-in door stopper/1 stopper)
For 3 doors 3 guides 405.71.005
1 buffer set
1 set of mounting material
Supplied with
1 set
Note
Please order running and guide track separately.

→ Soft Closing Mechanism Set

Version Door weight Supplied with Item No.
For 2 doors
1 set: For soft close on one side
2 sets: For soft close on both sides
For 3 doors order 2 sets 2 soft closing mechanism units
For 2 or 3 doors Up to 65 kg (143 lbs.) 405.11.323
1 set: Provides soft close for front center door 2 activators
into both directions
1 set: Provides soft close for 2 rear doors 7
into one direction
Supplied with
1 set

→ Tracks and Accessories
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Description Material Finish Length Item No.
2.5 m (8' 2 7/16") 405.70.713
Double running track, pre-drilled,
guide track for glue mounting Aluminum anodized
4.0 m (13' 1 1/2") 405.70.714
2.5 m (8' 2 7/16") 405.69.603
Single running track, pre-drilled, Aluminum anodized Sliding and Roller Shutter Systems
for door thickness > 28 mm (1 1/8")
4.0 m (13' 1 1/2”) 405.69.604
2.5 m (8' 2 7/16") 406.73.803
Guide track, bottom, for glue mounting Plastic gray
3.5 m (11' 5 13/16") 406.73.804
Fixing profile for wood panel, pre-drilled,
for clipping into single or double running track Aluminum anodized – 406.31.400
every 700–800 mm (27 9/16"–31 1/2")

Planofit straightening fitting sets page 7.91

www.hafele.com/us FC 7.39
8/22
