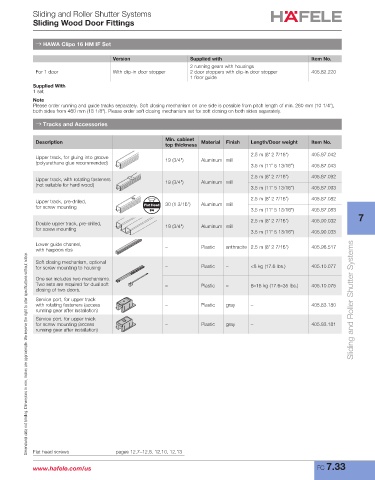

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Clipo 16 HM IF Set

Version Supplied with Item No.
2 running gears with housings
For 1 door With clip-in door stopper 2 door stoppers with clip-in door stopper 405.82.220
1 floor guide
Supplied With
1 set
Note
Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm (10 1/4"),
both sides from 460 mm (18 1/8"). Please order soft closing mechanism set for soft closing on both sides separately.

→ Tracks and Accessories

Min. cabinet
Description top thickness Material Finish Length/Door weight Item No.
15
16 (9/16")
Upper track, for gluing into groove (5/8") 19 (3/4") Aluminum mill 2.5 m (8' 2 7/16") 405.87.042
19
(polyurethane glue recommended) 19 (3/4")
(3/4") 3.5 m (11' 5 13/16") 405.87.043
15
13 (9/16")
17 (1/2") 2.5 m (8' 2 7/16") 405.87.092
19
Upper track, with rotating fasteners (11/16") Aluminum
(3/4") mill
19 (3/4")
(not suitable for hard wood) 19 15 3.5 m (11' 5 13/16") 405.87.093
14
(3/4") (9/16")
(7/16")
(1 3/16")
Min. 30
16
Upper track, pre-drilled, (5/8") 30 (1 3/16") Aluminum mill 2.5 m (8' 2 7/16") 405.87.082
for screw mounting Flat Head 3.5 m (11' 5 13/16") 405.87.083
#4
19
14
(3/4") (7/16")
2.5 m (8' 2 7/16") 405.90.032 7
Double upper track, pre-drilled, 19 (3/4") Aluminum mill
for screw mounting
3.5 m (11' 5 13/16") 405.90.033
Lower guide channel,
with harpoon ribs – Plastic anthracite 2.5 m (8' 2 7/16") 405.98.517
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Soft closing mechanism, optional
for screw mounting to housing – Plastic – <8 kg (17.6 lbs.) 405.10.077
One set includes two mechanisms.
Two sets are required for dual soft – Plastic – 8–16 kg (17.6–35 lbs.) 405.10.075
closing of two doors.
Service port, for upper track Sliding and Roller Shutter Systems
with rotating fasteners (access – Plastic gray – 405.83.180
running gear after installation)
Service port, for upper track
for screw mounting (access – Plastic gray – 405.83.181
running gear after installation)

Flat head screws pages 12.7–12.8, 12.10, 12.13
