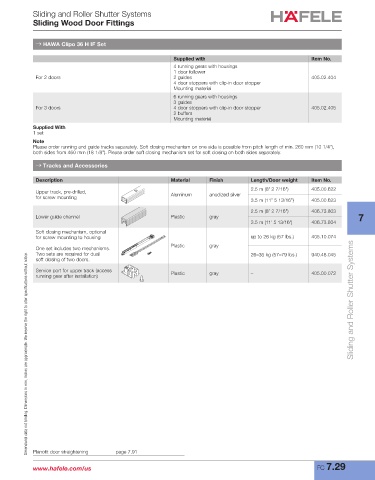

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Clipo 36 H IF Set

Supplied with Item No.
4 running gears with housings
1 door follower
For 2 doors 2 guides 405.02.404
4 door stoppers with clip-in door stopper
Mounting material
6 running gears with housings
3 guides
For 3 doors 4 door stoppers with clip-in door stopper 405.02.405
2 buffers
Mounting material
Supplied With
1 set
Note
Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm (10 1/4"),
both sides from 460 mm (18 1/8"). Please order soft closing mechanism set for soft closing on both sides separately.

→ Tracks and Accessories

Description Material Finish Length/Door weight Item No.
2.5 m (8' 2 7/16") 405.00.622
Upper track, pre-drilled, Aluminum anodized silver
for screw mounting
3.5 m (11' 5 13/16") 405.00.623
2.5 m (8’ 2 7/16") 406.73.803
Lower guide channel Plastic gray 7
3.5 m (11’ 5 13/16") 406.73.804
Soft closing mechanism, optional
for screw mounting to housing up to 26 kg (57 lbs.) 405.10.074
Plastic gray
One set includes two mechanisms.
Two sets are required for dual 26–36 kg (57–79 lbs.) 940.48.045
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
soft closing of two doors.
Service port for upper track (access
running gear after installation) Plastic gray – 405.00.072 Sliding and Roller Shutter Systems

Planofit door straightening page 7.91
