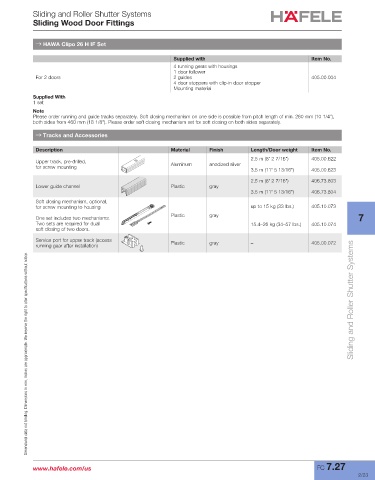

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ HAWA Clipo 26 H IF Set

Supplied with Item No.
4 running gears with housings
1 door follower
For 2 doors 2 guides 405.00.004
4 door stoppers with clip-in door stopper
Mounting material
Supplied With
1 set
Note
Please order running and guide tracks separately. Soft closing mechanism on one side is possible from pitch length of min. 260 mm (10 1/4"),
both sides from 460 mm (18 1/8"). Please order soft closing mechanism set for soft closing on both sides separately.

→ Tracks and Accessories

Description Material Finish Length/Door weight Item No.
Upper track, pre-drilled, 2.5 m (8' 2 7/16") 405.00.622
for screw mounting Aluminum anodized silver
3.5 m (11' 5 13/16") 405.00.623
2.5 m (8' 2 7/16") 406.73.803
Lower guide channel Plastic gray
3.5 m (11' 5 13/16") 406.73.804
Soft closing mechanism, optional,
for screw mounting to housing up to 15 kg (33 lbs.) 405.10.073
Plastic gray
One set includes two mechanisms. 7
Two sets are required for dual 15.4–26 kg (34–57 lbs.) 405.10.074
soft closing of two doors.
Service port for upper track (access Plastic gray – 405.00.072
running gear after installation) Sliding and Roller Shutter Systems
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
