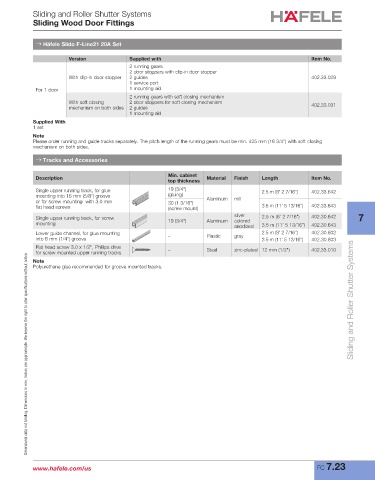

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ Häfele Slido F-Line21 20A Set

Version Supplied with Item No.
2 running gears
2 door stoppers with clip-in door stopper
With clip-in door stopper 2 guides 402.33.029
1 service port
For 1 door 1 mounting aid
2 running gears with soft closing mechanism
With soft closing 2 door stoppers for soft closing mechanism 402.33.031
mechanism on both sides 2 guides
1 mounting aid
Supplied With
1 set
Note
Please order running and guide tracks separately. The pitch length of the running gears must be min. 425 mm (16 3/4") with soft closing
mechanism on both sides.

→ Tracks and Accessories

Description Min. cabinet Material Finish Length Item No.
top thickness
Single upper running track, for glue 19 (3/4") 2.5 m (8' 2 7/16") 402.33.642
mounting into 16 mm (5/8”) groove (gluing) Aluminum mill
or for screw mounting with 3.0 mm 30 (1 3/16")
flat head screws (screw mount) 3.5 m (11' 5 13/16") 402.33.643
silver 2.5 m (8' 2 7/16") 402.30.642
Single upper running track, for screw 19 (3/4") Aluminum colored 7
mounting 3.5 m (11’ 5 13/16”) 402.30.643
anodized
Lower guide channel, for glue mounting 2.5 m (8' 2 7/16") 402.30.802
into 6 mm (1/4") groove – Plastic gray 3.5 m (11' 5 13/16") 402.30.803
Flat head screw 3.0 x 1/2", Phillips drive
for screw mounted upper running tracks – Steel zinc-plated 12 mm (1/2") 402.33.010
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Note
Polyurethane glue recommended for groove mounted tracks. Sliding and Roller Shutter Systems

www.hafele.com/us FC 7.23
