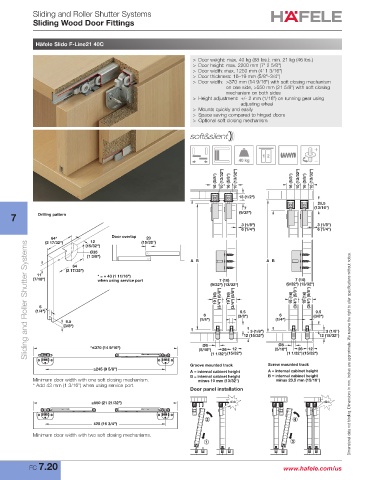

Häfele Slido F-Line21 40C

> Door weight: max. 40 kg (88 lbs.); min. 21 kg (46 lbs.)
> Door height: max. 2200 mm (7' 2 5/8")
> Door width: max. 1250 mm (4' 1 3/16")
> Door thickness: 16–19 mm (5/8"–3/4")
> Door width: >370 mm (14 9/16") with soft closing mechanism
on one side, >550 mm (21 5/8") with soft closing
mechanism on both sides
> Height adjustment: +/‑ 2 mm (1/16") on running gear using
adjusting wheel
> Mounts quickly and easily
> Space saving compared to hinged doors
> Optional soft closing mechanism

16 (5/8") 10 (13/32") 16 (5/8") 10 (13/32") 16 (5/8") 10 (13/32") 16 (5/8") 10 (13/32")

13 (1/2")
20.5
7 (13/16")
7 Drilling pattern (9/32")
3 (1/8") 3 (1/8")
6 (1/4") 6 (1/4")
64* Door overlap 20
Sliding and Roller Shutter Systems
(2 17/32") 12 (15/32")
(15/32")
Ø35
(1 3/8")
A B A B
64
(2 17/32")
11 * = + 43 (1 11/16")
(7/16") when using service port 7 (10) 7 (10)
(9/32") (13/32") (9/32") (13/32")
19 (16) (3/4") (5/8") 19 (16) (3/4") (5/8") 19 (16) (3/4") (5/8") 19 (16) (3/4") (5/8")
6
(1/4") 9.5 9.5
6 (3/8") 6 (3/8")
9.5 (1/4") (1/4")
(3/8")
3 (1/8") 3 (1/8")
12 (15/32") 12 (15/32")
Ø8 Ø8
*≤370 (14 9/16") 12 26 12
(5/16") 26 (5/16")
(1 1/32") (15/32") (1 1/32")(15/32") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Groove mounted track Screw mounted track
≥245 (9 5/8") A = internal cabinet height
A = internal cabinet height B = internal cabinet height
Minimum door width with one soft closing mechanism. B = internal cabinet height minus 23.5 mm (15/16")
minus 10 mm (13/32")
* Add 43 mm (1 3/16") when using service port.
Door panel installation
≥550 (21 21/32")

425 (16 3/4")

Minimum door width with two soft closing mechanisms.
