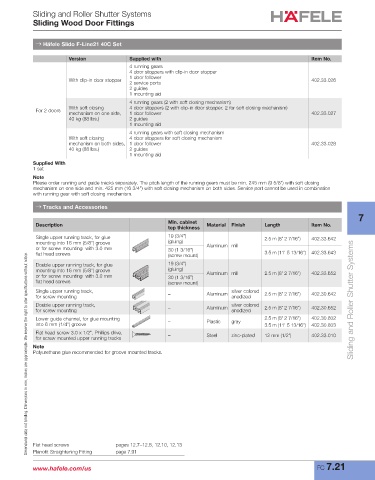

Sliding and Roller Shutter Systems
Sliding Wood Door Fittings

→ Häfele Slido F-Line21 40C Set

Version Supplied with Item No.
4 running gears
4 door stoppers with clip‑in door stopper
1 door follower
With clip‑in door stopper 402.33.026
2 service ports
2 guides
1 mounting aid
4 running gears (2 with soft closing mechanism)
With soft closing 4 door stoppers (2 with clip‑in door stopper, 2 for soft closing mechanism)
For 2 doors
mechanism on one side, 1 door follower 402.33.027
40 kg (88 lbs.) 2 guides
1 mounting aid
4 running gears with soft closing mechanism
With soft closing 4 door stoppers for soft closing mechanism
mechanism on both sides, 1 door follower 402.33.028
40 kg (88 lbs.) 2 guides
1 mounting aid
Supplied With
1 set
Note
Please order running and guide tracks separately. The pitch length of the running gears must be min. 245 mm (9 5/8”) with soft closing
mechanism on one side and min. 425 mm (16 3/4”) with soft closing mechanism on both sides. Service port cannot be used in combination
with running gear with soft closing mechanism.

→ Tracks and Accessories
7
Min. cabinet
Description top thickness Material Finish Length Item No.
Single upper running track, for glue 19 (3/4") 2.5 m (8' 2 7/16") 402.33.642
mounting into 16 mm (5/8”) groove (gluing)
or for screw mounting with 3.0 mm 30 (1 3/16") Aluminum mill
flat head screws (screw mount) 3.5 m (11' 5 13/16") 402.33.643
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Double upper running track, for glue 19 (3/4”)
mounting into 16 mm (5/8") groove (gluing)
or for screw mounting with 3.0 mm 30 (1 3/16”) Aluminum mill 2.5 m (8' 2 7/16") 402.33.652
flat head screws (screw mount)
Single upper running track, – Aluminum silver colored 2.5 m (8' 2 7/16") 402.30.642
for screw mounting anodized
Double upper running track, silver colored Sliding and Roller Shutter Systems
for screw mounting – Aluminum anodized 2.5 m (8' 2 7/16") 402.30.652
Lower guide channel, for glue mounting – Plastic gray 2.5 m (8' 2 7/16") 402.30.802
into 6 mm (1/4") groove 3.5 m (11' 5 13/16") 402.30.803
Flat head screw 3.0 x 1/2", Phillips drive, – Steel zinc‑plated 12 mm (1/2") 402.33.010
for screw mounted upper running tracks
Note
Polyurethane glue recommended for groove mounted tracks.

Flat head screws pages 12.7–12.8, 12.10, 12.13
Planofit Straightening Fitting page 7.91

www.hafele.com/us FC 7.21
