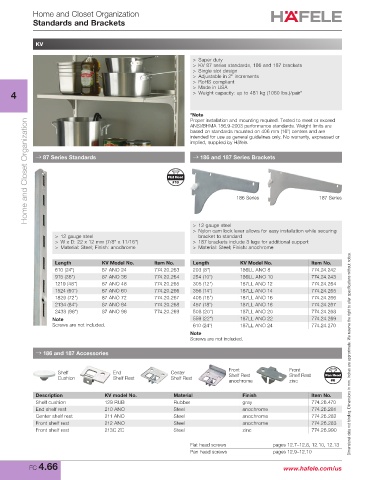

Home and Closet Organization
Standards and Brackets

KV

> Super duty
> KV 87 series standards, 186 and 187 brackets
> Single slot design
> Adjustable in 2" increments
> RoHS compliant
> Made in USA
4 > Weight capacity: up to 481 kg (1060 lbs.)/pair*

*Note
Proper installation and mounting required. Tested to meet or exceed
Home and Closet Organization → 87 Series Standards Flat Head → 186 and 187 Series Brackets 187 Series
ANSI/BHMA 156.9-2003 performance standards. Weight limits are
based on standards mounted on 406 mm (16") centers and are
intended for use as general guidelines only. No warranty, expressed or
implied, supplied by Häfele.

#10

186 Series

> 12 gauge steel
> Nylon cam lock lever allows for easy installation while securing
> 12 gauge steel bracket to standard
> W x D: 22 x 12 mm (7/8" x 11/16") > 187 brackets include 3 lugs for additional support
> Material: Steel; Finish: anochrome > Material: Steel; Finish: anochrome

Length KV Model No. Item No. Length KV Model No. Item No.
610 (24") 87 ANO 24 774.20.263 203 (8") 186LL ANO 8 774.24.242
915 (36") 87 ANO 36 774.20.264 254 (10") 186LL ANO 10 774.24.243
1219 (48") 87 ANO 48 774.20.265 305 (12") 187LL ANO 12 774.24.264
1524 (60") 87 ANO 60 774.20.266 356 (14") 187LL ANO 14 774.24.265
1829 (72") 87 ANO 72 774.20.267 406 (16") 187LL ANO 16 774.24.266
2134 (84") 87 ANO 84 774.20.268 457 (18") 187LL ANO 18 774.24.267
2438 (96") 87 ANO 96 774.20.269 508 (20") 187LL ANO 20 774.24.268
Note 559 (22") 187LL ANO 22 774.24.269
Screws are not included. 610 (24") 187LL ANO 24 774.24.270
Note
Screws are not included.

→ 186 and 187 Accessories Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

Front Front
Shelf End Center Shelf Rest Shelf Rest Pan Head
Cushion Shelf Rest Shelf Rest
anochrome zinc #6
Description KV model No. Material Finish Item No.
Shelf cushion 129 RUB Rubber gray 774.26.470
End shelf rest 210 ANO Steel anochrome 774.26.281
Center shelf rest 211 ANO Steel anochrome 774.26.282
Front shelf rest 212 ANO Steel anochrome 774.26.283
Front shelf rest 213C ZC Steel zinc 774.26.990

Flat head screws pages 12.7–12.8, 12.10, 12.13
Pan head screws pages 12.9–12.10
FC 4.66 www.hafele.com/us
