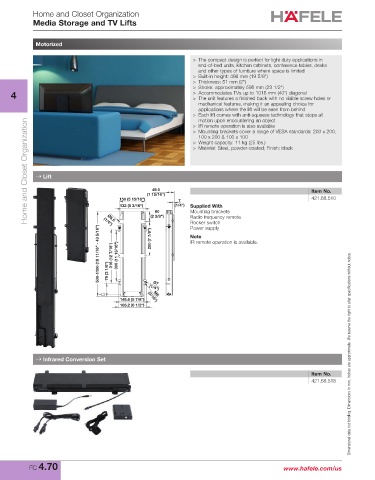

P. 254
Home and Closet Organization
Media Storage and TV Lifts
Motorized
> The compact design is perfect for light duty applications in
end-of-bed units, kitchen cabinets, conference tables, desks
and other types of furniture where space is limited
> Built-in height: 498 mm (19 5/8")
> Thickness: 51 mm (2")
> Stroke: approximately 596 mm (23 1/2")
4 > Accommodates TVs up to 1016 mm (40") diagonal
> The unit features a finished back with no visible screw holes or
mechanical features, making it an appealing choice for
applications where the lift will be seen from behind
> Each lift comes with anti-squeeze technology that stops all
motion upon encountering an object
Home and Closet Organization → Lift 150 (5 15/16") (1 15/16") (1/4") Supplied With Item No.
> IR remote operation is also available
> Mounting brackets cover a range of VESA standards: 200 x 200,
100 x 200 & 100 x 100
> Weight capacity: 11 kg (25 lbs.)
> Material: Steel, powder-coated; Finish: black
49.5
421.68.510
7
132 (5 3/16")
Mounting brackets
60
Ø5.5
Rocker switch
500-1100 (19 11/16" - 43 5/16") (1/4") 316 (12 7/16") 300 (11 13/16") (2 3/8") Radio frequency remote
Power supply
200 (7 7/8")
Note
IR remote operation is available.
79 (3 1/8")
Ø7
(1/4")
M5
148.6 (5 7/8") (3/16")
165.2 (6 1/2")
→ Infrared Conversion Set Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No.
421.68.518
FC 4.70 www.hafele.com/us
