Home and Closet Organization
Media Storage and TV Lifts

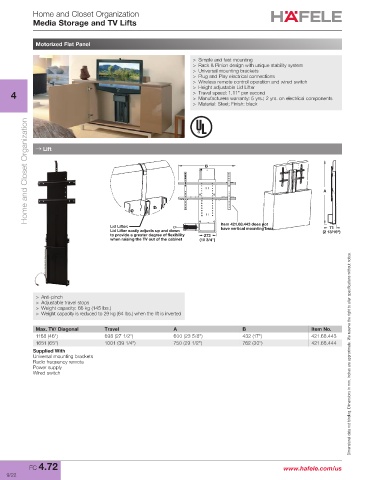

Motorized Flat Panel

> Simple and fast mounting
> Rack & Pinion design with unique stability system
> Universal mounting brackets
> Plug and Play electrical connections
> Wireless remote control operation and wired switch
> Height adjustable Lid Lifter
4 > Travel speed: 1.11" per second
> Manufacturers warranty: 5 yrs.; 2 yrs. on electrical components
> Material: Steel; Finish: black

Home and Closet Organization → Lift B A

Lid Lifter: Item 421.68.443 does not 71
Lid Lifter easily adjusts up and down have vertical mounting bars. (2 13/16")
to provide a greater degree of flexibility 273
when raising the TV out of the cabinet (10 3/4")

> Anti-pinch
> Adjustable travel stops
> Weight capacity: 66 kg (145 lbs.)
> Weight capacity is reduced to 29 kg (64 lbs.) when the lift is inverted

Max. TV/ Diagonal Travel A B Item No.
1168 (46") 698 (27 1/2") 600 (23 5/8") 432 (17") 421.68.443
1651 (65") 1001 (39 1/4") 750 (29 1/2") 762 (30") 421.68.444
Supplied With
Universal mounting brackets Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Radio frequency remote
Power supply
Wired switch

FC 4.72 www.hafele.com/us
9/22
