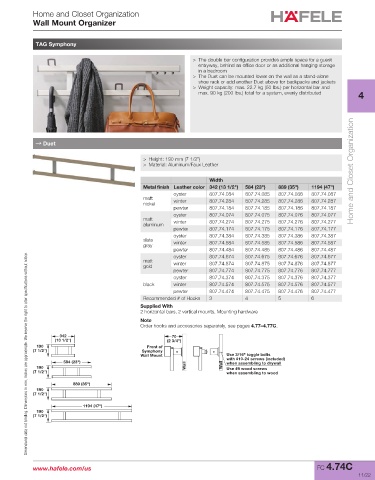

Page 261 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Home and Closet Organization
Wall Mount Organizer

TAG Symphony

> The double bar configuration provides ample space for a guest
entryway, behind an office door or as additional hanging storage
in a bedroom
> The Duet can be mounted lower on the wall as a stand-alone
shoe rack or add another Duet above for backpacks and jackets
> Weight capacity: max. 22.7 kg (50 lbs.) per horizontal bar and
max. 90 kg (200 lbs.) total for a system, evenly distributed 4

→ Duet

> Height: 190 mm (7 1/2”)
> Material: Aluminum/Faux Leather Home and Closet Organization

Width
Metal fi nish Leather color 342 (13 1/2") 584 (23") 889 (35") 1194 (47")
oyster 807.74.084 807.74.085 807.74.086 807.74.087
matt
nickel winter 807.74.284 807.74.285 807.74.286 807.74.287
pewter 807.74.184 807.74.185 807.74.186 807.74.187
oyster 807.74.074 807.74.075 807.74.076 807.74.077
matt
aluminum winter 807.74.274 807.74.275 807.74.276 807.74.277
pewter 807.74.174 807.74.175 807.74.176 807.74.177
oyster 807.74.384 807.74.385 807.74.386 807.74.387
slate
gray winter 807.74.584 807.74.585 807.74.586 807.74.587
pewter 807.74.484 807.74.485 807.74.486 807.74.487
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
oyster 807.74.674 807.74.675 807.74.676 807.74.677
matt
gold winter 807.74.874 807.74.875 807.74.876 807.74.877
pewter 807.74.774 807.74.775 807.74.776 807.74.777
oyster 807.74.374 807.74.375 807.74.376 807.74.377
black winter 807.74.574 807.74.575 807.74.576 807.74.577
pewter 807.74.474 807.74.475 807.74.476 807.74.477
Recommended # of Hooks 3 4 5 6
Supplied With
2 horizontal bars, 2 vertical mounts, Mounting hardware
Note
Order hooks and accessories separately, see pages 4.77–4.77C.
342 70
(13 1/2") (2 3/4")
190 Front of
(7 1/2") Symphony
Wall Mount Use 3/16" toggle bolts
584 (23") with #10-24 screws (included)
when assembling to drywall
190 Wall Wall Use #8 wood screws
(7 1/2") when assembling to wood
889 (35")
190
(7 1/2")
1194 (47")
190
(7 1/2")

www.hafele.com/us FC 4.74C
11/22
