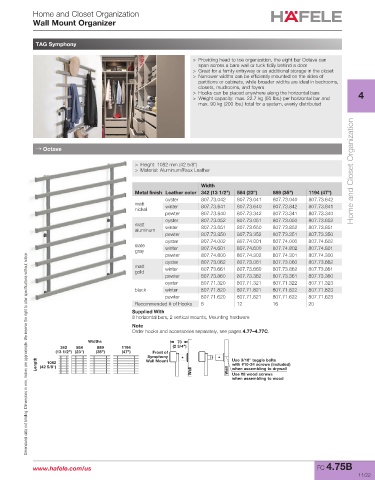

Home and Closet Organization
Wall Mount Organizer

TAG Symphony
TAG Symphony

> Providing head to toe organization, the eight bar Octave can
span across a bare wall or tuck tidily behind a door
> Great for a family entryway or as additional storage in the closet
> Narrower widths can be efficiently mounted on the sides of
partitions or cabinets, while broader widths are ideal in bedrooms,
closets, mudrooms, and foyers
> Hooks can be placed anywhere along the horizontal bars 4
> Weight capacity: max. 22.7 kg (50 lbs.) per horizontal bar and
max. 90 kg (200 lbs.) total for a system, evenly distributed

→ Octave

> Height: 1082 mm (42 5/8")
> Material: Aluminum/Faux Leather Home and Closet Organization

Width
Metal fi nish Leather color 342 (13 1/2") 584 (23") 889 (35") 1194 (47")
oyster 807.73.042 807.73.041 807.73.040 807.73.642
matt
nickel winter 807.73.641 807.73.640 807.73.842 807.73.841
pewter 807.73.840 807.73.342 807.73.341 807.73.340
oyster 807.73.052 807.73.051 807.73.050 807.73.652
matt
aluminum winter 807.73.651 807.73.650 807.73.852 807.73.851
pewter 807.73.850 807.73.352 807.73.351 807.73.350
oyster 807.74.002 807.74.001 807.74.000 807.74.602
slate
gray winter 807.74.601 807.74.600 807.74.802 807.74.801
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
pewter 807.74.800 807.74.302 807.74.301 807.74.300
oyster 807.73.062 807.73.061 807.73.060 807.73.662
matt
gold winter 807.73.661 807.73.660 807.73.862 807.73.861
pewter 807.73.860 807.73.362 807.73.361 807.73.360
oyster 807.71.320 807.71.321 807.71.322 807.71.323
black winter 807.71.820 807.71.821 807.71.822 807.71.823
pewter 807.71.620 807.71.621 807.71.622 807.71.623
Recommended # of Hooks 8 12 16 20
Supplied With
8 horizontal bars, 2 vertical mounts, Mounting hardware
Note
Order hooks and accessories separately, see pages 4.77–4.77C.
Widths 70
342 584 889 1194 (2 3/4")
(13 1/2") (23") (35") (47") Front of
Symphony Use 3/16" toggle bolts
Length (42 5/8") Wall Mount Wall Wall with #10-24 screws (included)
1082
when assembling to drywall
Use #8 wood screws
when assembling to wood

www.hafele.com/us FC 4.75B
11/22
