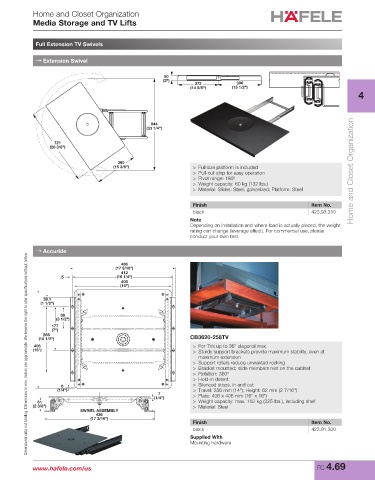

Home and Closet Organization
Media Storage and TV Lifts

Full Extension TV Swivels

→ Extension Swivel

50
(2")
372 396
(14 5/8") (15 1/2")
4

844
(33 1/4")

721
(28 3/8")

390
(15 3/8") > Full size platform is included
> Pull-out strip for easy operation Home and Closet Organization
> Pivot range: 180º
> Weight capacity: 60 kg (132 lbs.)
> Material: Slides: Steel, galvanized; Platform: Steel

Finish Item No.
black 423.93.310
Note
Depending on installation and where load is actually placed, the weight
rating can change (leverage effect). For commercial use, please
conduct your own test.
→ Accuride
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
436
(17 3/16")
412
.5 (16 1/4")
406
(16")
38.1
(1 1/2")

88
(3 1/2")
177
(7")
266 CB3620-258TV
(10 1/2")
406 > For TVs up to 36" diagonal max.
(16") > Sturdy support brackets provide maximum stability, even at
maximum extension
> Support rollers reduce unwanted rocking
> Bracket mounted; slide members rest on the cabinet
> Rotation: 360º
> Hold-in detent
6 > Silenced stops, in and out
(1/4") > Travel: 356 mm (14"); Height: 62 mm (2 7/16")
7
(1/4") > Plate: 406 x 406 mm (16" x 16")
61 > Weight capacity: max. 102 kg (225 lbs.), including shelf
(2 3/8") > Material: Steel
SWIVEL ASSEMBLY
436
(17 3/16")
Finish Item No.
black 423.91.300
Supplied With
Mounting hardware

www.hafele.com/us FC 4.69
