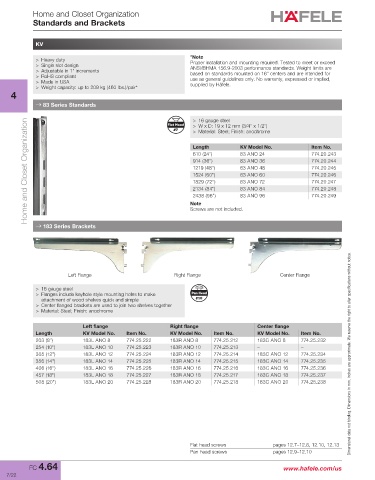

Home and Closet Organization
Standards and Brackets

KV

> Heavy duty *Note
> Single slot design Proper installation and mounting required. Tested to meet or exceed
> Adjustable in 1" increments ANSI/BHMA 156.9-2003 performance standards. Weight limits are
> RoHS compliant based on standards mounted on 16" centers and are intended for
> Made in USA use as general guidelines only. No warranty, expressed or implied,
> Weight capacity: up to 209 kg (460 lbs.)/pair* supplied by Häfele.
4

→ 83 Series Standards Flat Head > 16 gauge steel

Home and Closet Organization Length KV Model No. Item No.
> W x D: 19 x 12 mm (3/4" x 1/2")
#7
> Material: Steel; Finish: anochrome

83 ANO 24
774.20.243
610 (24")
83 ANO 36
914 (36")
774.20.244
774.20.245
83 ANO 48
1219 (48")
1524 (60")
774.20.246
83 ANO 60
1829 (72")
774.20.247
83 ANO 72
774.20.248
83 ANO 84
2134 (84")
774.20.249
83 ANO 96
2438 (96")
Screws are not included.
→ 183 Series Brackets Note
Left Flange Right Flange Center Flange

> 16 gauge steel
> Flanges include keyhole style mounting holes to make Pan Head
attachment of wood shelves quick and simple #10
> Center flanged brackets are used to join two shelves together
> Material: Steel; Finish: anochrome

Left flange Right flange Center flange
Length KV Model No. Item No. KV Model No. Item No. KV Model No. Item No.
203 (8") 183L ANO 8 774.25.222 183R ANO 8 774.25.212 183C ANO 8 774.25.232
254 (10") 183L ANO 10 774.25.223 183R ANO 10 774.25.213 – –
305 (12") 183L ANO 12 774.25.224 183R ANO 12 774.25.214 183C ANO 12 774.25.234 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
356 (14") 183L ANO 14 774.25.225 183R ANO 14 774.25.215 183C ANO 14 774.25.235
406 (16") 183L ANO 16 774.25.226 183R ANO 16 774.25.216 183C ANO 16 774.25.236
457 (18") 183L ANO 18 774.25.227 183R ANO 18 774.25.217 183C ANO 18 774.25.237
508 (20") 183L ANO 20 774.25.228 183R ANO 20 774.25.218 183C ANO 20 774.25.238

Flat head screws pages 12.7–12.8, 12.10, 12.13
Pan head screws pages 12.9–12.10
