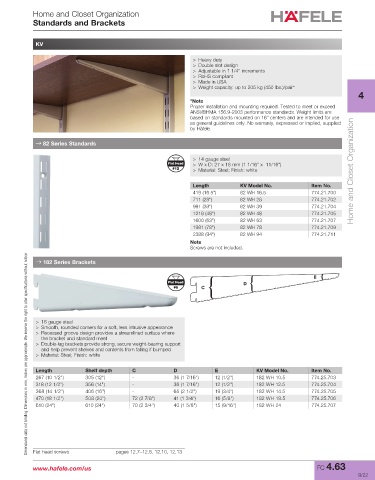

Home and Closet Organization
Standards and Brackets

KV

> Heavy duty
> Double slot design
> Adjustable in 1 1/4" increments
> RoHS compliant
> Made in USA
> Weight capacity: up to 205 kg (450 lbs.)/pair*
4
*Note
Proper installation and mounting required. Tested to meet or exceed
ANSI/BHMA 156.9-2003 performance standards. Weight limits are
based on standards mounted on 16" centers and are intended for use
as general guidelines only. No warranty, expressed or implied, supplied
by Häfele.
→ 82 Series Standards

> 14 gauge steel
Flat Head > W x D: 27 x 18 mm (1 1/16" x 11/16")
#12 > Material: Steel; Finish: white Home and Closet Organization

Length KV Model No. Item No.
419 (16.5") 82 WH 16.5 774.21.700
711 (28") 82 WH 28 774.21.702
991 (39") 82 WH 39 774.21.704
1219 (48") 82 WH 48 774.21.705
1600 (63") 82 WH 63 774.21.707
1981 (78") 82 WH 78 774.21.709
2388 (94") 82 WH 94 774.21.711
Note
Screws are not included.
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
→ 182 Series Brackets

E
Flat Head D
#6 C

> 16 gauge steel
> Smooth, rounded corners for a soft, less intrusive appearance
> Recessed groove design provides a streamlined surface where
the bracket and standard meet
> Double-lug brackets provide strong, secure weight-bearing support
and help prevent shelves and contents from falling if bumped
> Material: Steel; Finish: white

Length Shelf depth C D E KV Model No. Item No.
267 (10 1/2") 305 (12") - 36 (1 7/16") 12 (1/2") 182 WH 10.5 774.25.703
318 (12 1/2") 356 (14") - 36 (1 7/16") 12 (1/2") 182 WH 12.5 774.25.704
368 (14 1/2") 406 (16") - 65 (2 1/2") 19 (3/4") 182 WH 14.5 774.25.705
470 (18 1/2") 508 (20") 72 (2 7/8") 41 (1 3/4") 16 (5/8") 182 WH 18.5 774.25.706
610 (24") 610 (24") 70 (2 3/4") 40 (1 5/8") 15 (9/16") 182 WH 24 774.25.707

Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 4.63
