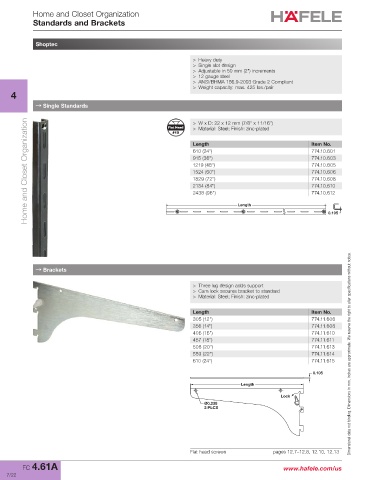

Home and Closet Organization
Standards and Brackets

Shoptec

> Heavy duty
> Single slot design
> Adjustable in 50 mm (2") increments
> 12 gauge steel
> ANSI/BHMA 156.9-2003 Grade 2 Compliant
> Weight capacity: max. 425 lbs./pair
4

→ Single Standards Flat Head > W x D: 22 x 12 mm (7/8" x 11/16")

Home and Closet Organization Length Length Item No.
> Material: Steel; Finish: zinc-plated
#10

610 (24")
774.10.601
774.10.603
915 (36")
1219 (48")
774.10.605
774.10.606
1524 (60")
774.10.608
1829 (72")
774.10.610
2134 (84")
774.10.612
2438 (96")
0.105

→ Brackets

> Three lug design adds support
> Cam lock secures bracket to standard
> Material: Steel; Finish: zinc-plated

Length Item No.
305 (12") 774.11.606
356 (14") 774.11.608
406 (16") 774.11.610
457 (18") 774.11.611
508 (20") 774.11.613
559 (22") 774.11.614 Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
610 (24") 774.11.615

0.105
Length
Lock
Ø0.238
2 PLCS

Flat head screws pages 12.7–12.8, 12.10, 12.13
FC 4.61A www.hafele.com/us
7/22
