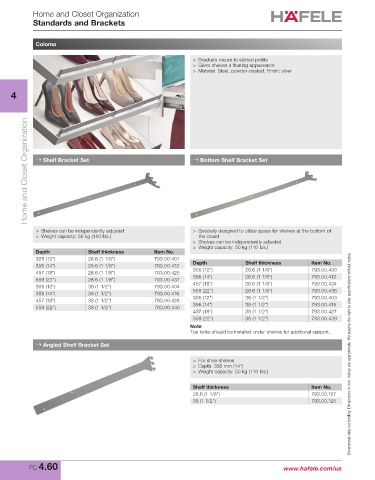

Home and Closet Organization
Standards and Brackets

Coloma

> Brackets mount to slotted profile
> Gives shelves a floating appearance
> Material: Steel, powder-coated; Finish: silver

4

Home and Closet Organization → Shelf Bracket Set → Bottom Shelf Bracket Set

> Shelves can be independently adjusted > Specially designed to utilize space for shelves at the bottom of
> Weight capacity: 50 kg (110 lbs.) the closet
> Shelves can be independently adjusted
> Weight capacity: 50 kg (110 lbs.)
Depth Shelf thickness Item No.
305 (12") 28.6 (1 1/8") 793.00.401
356 (14") 28.6 (1 1/8") 793.00.413 Depth Shelf thickness Item No.
457 (18") 28.6 (1 1/8") 793.00.425 305 (12") 28.6 (1 1/8") 793.00.400
559 (22") 28.6 (1 1/8") 793.00.437 356 (14") 28.6 (1 1/8") 793.00.412
305 (12") 38 (1 1/2") 793.00.404 457 (18") 28.6 (1 1/8") 793.00.424
356 (14") 38 (1 1/2") 793.00.416 559 (22") 28.6 (1 1/8") 793.00.436
457 (18") 38 (1 1/2") 793.00.428 305 (12") 38 (1 1/2") 793.00.403
559 (22") 38 (1 1/2") 793.00.440 356 (14") 38 (1 1/2") 793.00.415
457 (18") 38 (1 1/2") 793.00.427
559 (22") 38 (1 1/2") 793.00.439
Note
Toe kicks should be installed under shelves for additional support.

→ Angled Shelf Bracket Set

> For shoe shelves Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Depth: 356 mm (14")
> Weight capacity: 50 kg (110 lbs.)

Shelf thickness Item No.
28.6 (1 1/8") 793.00.127
38 (1 1/2") 793.00.125

FC 4.60 www.hafele.com/us
