Home and Closet Organization
Ceiling Storage Systems

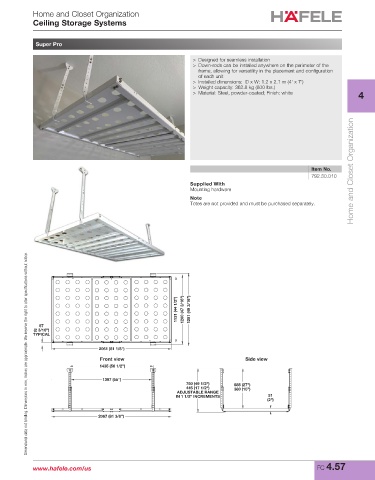

Super Pro

> Designed for seamless installation
> Down-rods can be installed anywhere on the perimeter of the
frame, allowing for versatility in the placement and configuration
of each unit
> Installed dimensions: D x W: 1.2 x 2.1 m (4’ x 7’)
> Weight capacity: 362.8 kg (800 lbs.)
> Material: Steel, powder-coated; Finish: white 4

Home and Closet Organization

Item No.
792.30.010
Supplied With
Mounting hardware
Note
Totes are not provided and must be purchased separately.

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

1131 (44 1/2") 1200 (47 3/16") 1251 (49 3/16")

57
(2 3/16")
TYPICAL

2061 (81 1/8")
Front view Side view
1435 (56 1/2")

1397 (55")
750 (49 1/2") 685 (27")
445 (17 1/2") 380 (15")
ADJUSTABLE RANGE
IN 1 1/2" INCREMENTS 51
(2")
2067 (81 3/8")

www.hafele.com/us FC 4.57
