Home and Closet Organization
Ceiling Storage Systems

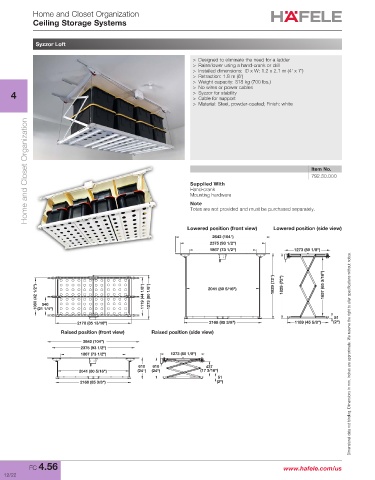

Syzzor Loft

> Designed to eliminate the need for a ladder
> Raise/lower using a hand-crank or drill
> Installed dimensions: D x W: 1.2 x 2.1 m (4' x 7')
> Retraction: 1.8 m (6')
> Weight capacity: 318 kg (700 lbs.)
> No wires or power cables
4 > Syzzor for stability
> Cable for support
> Material: Steel, powder-coated; Finish: white

Home and Closet Organization 1080 (42 1/2") 540 Supplied With 1119 (44 1/8") 1273 (50 1/8") Item No.

792.30.000

Hand-crank
Mounting hardware
Note
(21 1/4")
Totes are not provided and must be purchased separately.
2178 (85 13/16")
Lowered position (front view) Lowered position (side view)
2642 (104")
2375 (93 1/2")
1867 (73 1/2") 1273 (50 1/8")

1080 (42 1/2") 540 1119 (44 1/8") 1273 (50 1/8") 2041 (80 5/16") 1829 (72") 1829 (72") 1657 (65 3/16")

(21 1/4")
51
2178 (85 13/16") 2168 (85 3/8") 1159 (45 5/8") (2")
Raised position (front view) Raised position (side view)
2642 (104")
2375 (93 1/2")
1867 (73 1/2") 1273 (50 1/8") Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
610 610 437
2041 (80 5/16") (24") (24") (17 3/16")
51
2168 (85 3/8") (2")

FC 4.56 www.hafele.com/us
