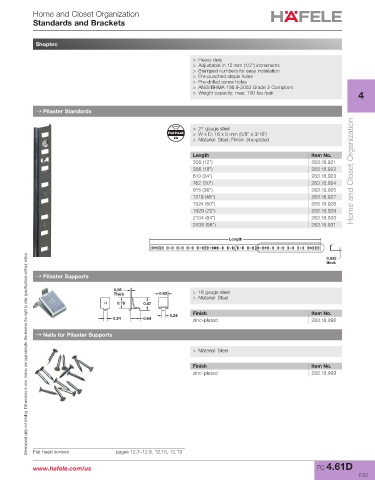

Page 245 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Home and Closet Organization
Standards and Brackets

Shoptec

> Heavy duty
> Adjustable in 12 mm (1/2") increments
> Stamped numbers for easy installation
> Pre-punched staple holes
> Pre-drilled screw holes
> ANSI/BHMA 156.9-2003 Grade 2 Compliant
> Weight capacity: max. 100 lbs./pair 4

→ Pilaster Standards

> 21 gauge steel
Flat Head > W x D: 16 x 5 mm (5/8" x 3/16")
#4 > Material: Steel; Finish: zinc-plated

Length Item No.
305 (12") 283.18.921
356 (18") 283.18.922 Home and Closet Organization
610 (24") 283.18.923
762 (30") 283.18.924
915 (36") 283.18.925
1219 (48") 283.18.927
1524 (60") 283.18.928
1829 (72") 283.18.929
2134 (84") 283.18.930
2438 (96") 283.18.931

Length

Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
0.032
thick

→ Pilaster Supports

0.06
Thick 0.63 > 16 gauge steel
> Material: Steel
0.76 0.87
Finish Item No.
0.24
0.24 0.64 zinc-plated 283.18.990

→ Nails for Pilaster Supports

> Material: Steel

Finish Item No.
zinc-plated 283.19.999

Flat head screws pages 12.7–12.8, 12.10, 12.13

www.hafele.com/us FC 4.61D
7/22
