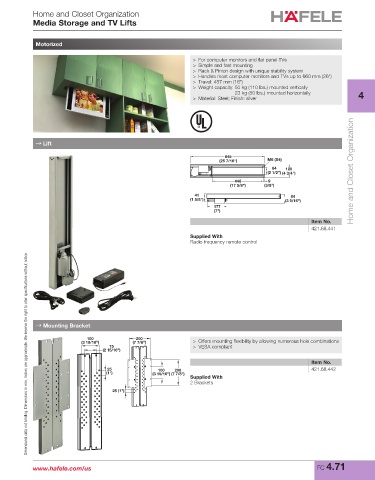

Page 255 - Furniture Cabinetry Hardware-FloorKitchenResource.com

Home and Closet Organization
Media Storage and TV Lifts

Omni Track®
Motorized

> For computer monitors and flat panel TVs
> Simple and fast mounting
> Rack & Pinion design with unique stability system
> Handles most computer monitors and TVs up to 660 mm (26")
> Travel: 457 mm (18")
> Weight capacity: 50 kg (110 lbs.) mounted vertically
23 kg (50 lbs.) mounted horizontally 4
> Material: Steel; Finish: silver

→ Lift

645
(25 7/16") M6 (X4)
64 120
(2 1/2") (4 3/4") Home and Closet Organization
448 9
(17 5/8") (3/8")
41 84
(1 5/8") (3 5/16")
177
(7")
Item No.
421.68.441
Supplied With
Radio frequency remote control
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.

→ Mounting Bracket
100 200
(3 15/16") (7 7/8") > Offers mounting flexibility by allowing numerous hole combinations
75 > VESA compliant
(2 15/16")
Item No.
25 100 200 421.68.442
(1") (3 15/16") (7 7/8")
Supplied With
2 Brackets
25 (1")

www.hafele.com/us FC 4.71
