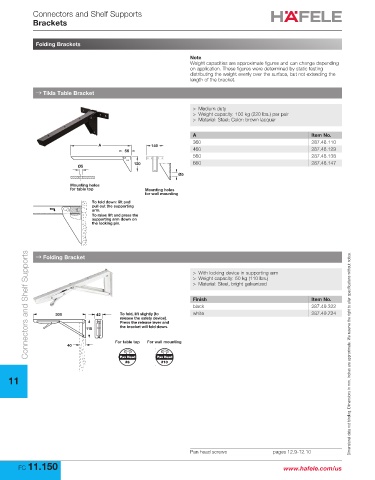

Connectors and Shelf Supports
Brackets

Folding Brackets

Note
Weight capacities are approximate figures and can change depending
on application. These figures were determined by static testing
distributing the weight evenly over the surface, but not extending the
length of the bracket.
→ Tikla Table Bracket

> Medium duty
> Weight capacity: 100 kg (220 lbs.) per pair
> Material: Steel; Color: brown lacquer

A Item No.
360 287.48.110
A 140
56 460 287.48.129
560 287.48.138
120 660 287.48.147
Ø5
Ø5
Mounting holes
for table top Mounting holes
for wall mounting
To fold down: lift and
pull out the supporting
arm.
To raise: lift and press the
supporting arm down on
the locking pin.

Connectors and Shelf Supports
→ Folding Bracket

> With locking device in supporting arm
> Weight capacity: 50 kg (110 lbs.)
> Material: Steel, bright galvanized

Finish Item No.
black 287.49.322
300 42 To fold, lift slightly (to white 287.49.724
release the safety device).
Press the release lever and
115 the bracket will fold down.
For table top For wall mounting
40
Pan Head Pan Head Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
#6 #10

11

Pan head screws pages 12.9-12.10
