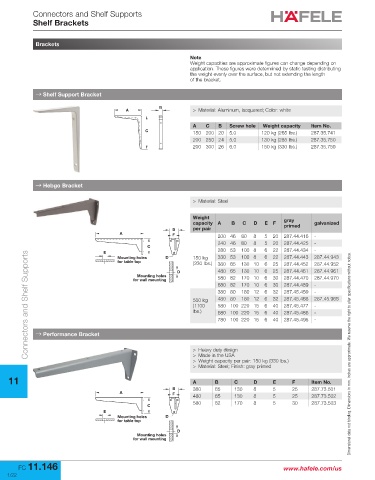

Connectors and Shelf Supports
Shelf Brackets

Brackets

Note
Weight capacities are approximate figures can change depending on
application. These figures were determined by static testing distributing
the weight evenly over the surface, but not extending the length
of the bracket.
→ Shelf Support Bracket

B
A > Material: Aluminum, lacquered; Color: white

A C B Screw hole Weight capacity Item No.
C 150 200 20 5.0 120 kg (265 lbs.) 287.35.741
200 250 24 5.0 130 kg (285 lbs.) 287.35.750
200 300 26 6.0 150 kg (330 lbs.) 287.35.759

→ Hebgo Bracket

> Material: Steel

Weight gray
capacity A B C D E F primed galvanized
B per pair
A F 200 46 80 8 5 20 287.44.416 -
240 46 80 8 5 20 287.44.425 -
C
Connectors and Shelf Supports
E 280 53 100 8 6 22 287.44.434 -
Mounting holes D 150 kg 330 53 100 8 6 22 287.44.443 287.44.943
for table top (330 lbs.) 380 65 130 10 6 25 287.44.452 287.44.952
D 480 65 130 10 6 25 287.44.461 287.44.961
Mounting holes 580 82 170 10 6 30 287.44.470 287.44.970
for wall mounting
680 82 170 10 6 30 287.44.489 -
380 80 180 12 6 32 287.45.459 -
500 kg 480 80 180 12 6 32 287.45.468 287.45.968
(1100 580 100 220 15 6 40 287.45.477 -
lbs.) 680 100 220 15 6 40 287.45.486 -
780 100 220 15 6 40 287.45.495 -

→ Performance Bracket

> Heavy duty design
> Made in the USA Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
> Weight capacity per pair: 150 kg (330 lbs.)
> Material: Steel; Finish: gray primed
11 A B C D E F Item No.

B 380 65 130 8 5 25 287.73.501
A F 480 65 130 8 5 25 287.73.502
580 82 170 8 5 30 287.73.503
C
E
Mounting holes D
for table top
D
Mounting holes
for wall mounting
