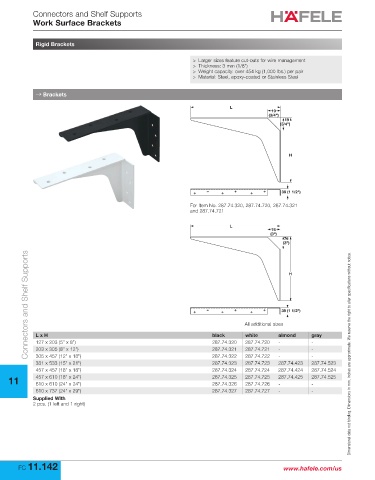

Connectors and Shelf Supports
Work Surface Brackets

Rigid Brackets

> Larger sizes feature cut-outs for wire management
> Thickness: 3 mm (1/8")
> Weight capacity: over 454 kg (1,000 lbs.) per pair
> Material: Steel, epoxy-coated or Stainless Steel

→ Brackets

L
19
(3/4")
19
(3/4")

H

39 (1 1/2")
For Item No. 287.74.320, 287.74.720, 287.74.321
and 287.74.721

L
76
(3")
76
(3")
Connectors and Shelf Supports

H

39 (1 1/2")

All additional sizes
L x H black white almond gray
127 x 203 (5" x 8") 287.74.320 287.74.720 - -
203 x 305 (8" x 12") 287.74.321 287.74.721 - -
305 x 457 (12" x 18") 287.74.322 287.74.722 - - Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
381 x 533 (15" x 21") 287.74.323 287.74.723 287.74.423 287.74.523
457 x 457 (18" x 18") 287.74.324 287.74.724 287.74.424 287.74.524
11 457 x 610 (18" x 24") 287.74.325 287.74.725 287.74.425 287.74.525
-
287.74.326
610 x 610 (24" x 24")
-
287.74.726
610 x 737 (24" x 29") 287.74.327 287.74.727 - -
Supplied With
2 pcs. (1 left and 1 right)

FC 11.142 www.hafele.com/us
