Connectors and Shelf Supports
Work Surface Brackets

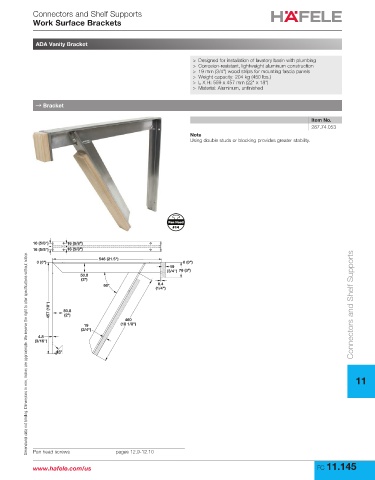

ADA Vanity Bracket
> Designed for installation of lavatory basin with plumbing
> Corrosion-resistant, lightweight aluminum construction
> 19 mm (3/4") wood strips for mounting fascia panels
> Weight capacity: 204 kg (450 lbs.)
> L X H: 559 x 457 mm (22" x 18")
> Material: Aluminum, unfinished
→ Bracket
Item No.
287.74.053
Note
Using double studs or blocking provides greater stability.
Pan Head
#14
16 (5/8") 16 (5/8")
16 (5/8") 16 (5/8")
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
546 (21.5")
0 (0") 0 (0")
19
(3/4") 76 (3")
50.8
(2")
60º 6.4
(1/4")
457 (18") 50.8 Connectors and Shelf Supports
(2")
460
19 (18 1/8")
(3/4")
4.8
(3/16")
45º
11
Pan head screws pages 12.9-12.10
