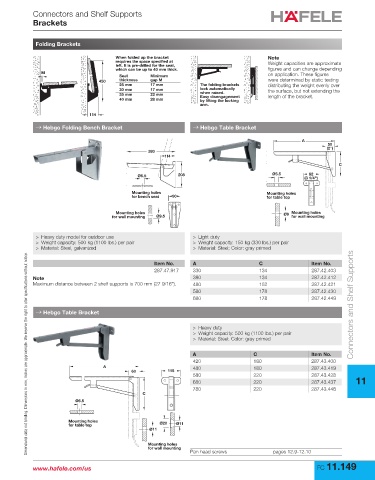

Connectors and Shelf Supports
Brackets

Folding Brackets

When folded up the bracket Note
requires the space specified at Weight capacities are approximate
left. It is pre-drilled for the seat,
which can be up to 40 mm thick. figures and can change depending
M on application. These figures
Seat Minimum
450 thickness gap M were determined by static testing
25 mm 17 mm The folding brackets distributing the weight evenly over
30 mm 17 mm lock automatically the surface, but not extending the
35 mm 22 mm when raised. length of the bracket.
Easy disengagement
40 mm 28 mm by lifting the locking
arm.
114
→ Hebgo Folding Bench Bracket → Hebgo Table Bracket

A
50
(2")
380
114
C
82
Ø6.5 208 Ø5.5 (3 1/4")

Mounting holes Mounting holes
for bench seat 90 for table top

Mounting holes Ø9 Mounting holes
for wall mounting Ø9.5 for wall mounting

> Heavy duty model for outdoor use > Light duty
> Weight capacity: 500 kg (1100 lbs.) per pair > Weight capacity: 150 kg (330 lbs.) per pair
> Material: Steel, galvanized > Material: Steel; Color: gray primed
Dimensional data not binding. Dimensions in mm, inches are approximate. We reserve the right to alter specifications without notice.
Item No. A C Item No.
287.47.917 330 134 287.42.403
Note 380 134 287.42.412
Maximum distance between 2 shelf supports is 700 mm (27 9/16"). 480 152 287.42.421
580 178 287.42.430
680 178 287.42.449

→ Hebgo Table Bracket Connectors and Shelf Supports

> Heavy duty
> Weight capacity: 500 kg (1100 lbs.) per pair
> Material: Steel; Color: gray primed

A C Item No.
420 180 287.43.400
A 480 180 287.43.419
60 115
580 220 287.43.428
680 220 287.43.437 11
780 220 287.43.446
C
Ø6.5

Mounting holes Ø20
for table top Ø11
Ø11

Mounting holes
for wall mounting
Pan head screws pages 12.9-12.10

www.hafele.com/us FC 11.149
